Blender add-on tutorial

You can use the tissue-cartography in this repository in two ways: as Python library, and as an add-on for the 3d creation software blender. This tutorial covers the add-on, which has an interactive, graphical user interface. Use it to quickly process a new dataset, or if you are not a coding expert. Dynamic datasets (multiple time points, or multiple samples) are covered in the next tutorial.

The add-on workflow starts with 2 items: a 3D image as a multipage .tiff, and a volumetric segmentation of it into “inside” and “outside” of the object you want to extract. The surface of interest onto which the image is projected is the inside-outside boundary. The tutorial appendix “3D segmentation with Ilastik” explains one way to segment your data. Alternatively, you can load the surface directly into Blender. You can also generate the surface from a point cloud, for example, if your surface is a thin sheet and not the boundary of a solid object (see this tutorial).

Installation

Install Blender. We recommend the LTS version 4.5.
Download the add-on .zip from the GitHub releases page. Choose the file that matches your operating system (e.g. linux_x64).
- If your OS is unavailable, download the add-on source code, and install the python library scikit-image in Blender’s Python interface.
Download the tutorial dataset from the GitHub releases page.
Optional: Download and install the MeshLab add-on (pymeshlab_remesh-*.zipfor your OS) from the GitHub releases page. Install it via “Edit -> Preferences -> Add-ons -> Install from disk”. It adds mesh-improvement filters under “Scene -> PyMeshLab Remeshing”, which are useful for cleaning up meshes from 3D segmentations (see Fixing surfaces below).

Blender user interface

We will use Blender for visualization, mesh editing, and cartographic projection of surfaces (known as “UV mapping” in the graphics community). Blender’s user interface can be slightly overwhelming at first, but don’t despair, it is very easy to learn. There are many great blender tutorials available on the web, and the manual can be found here, from which most of the material in this tutorial is taken. Many people use blender, so when you have a question of the form “How do I do X in blender?”, a Google search will probably answer it. We start with lightning overview of the part of Blender’s user interface relevant to tissue cartography. We assume you are using Blender 4.3 or newer.

Starting Blender

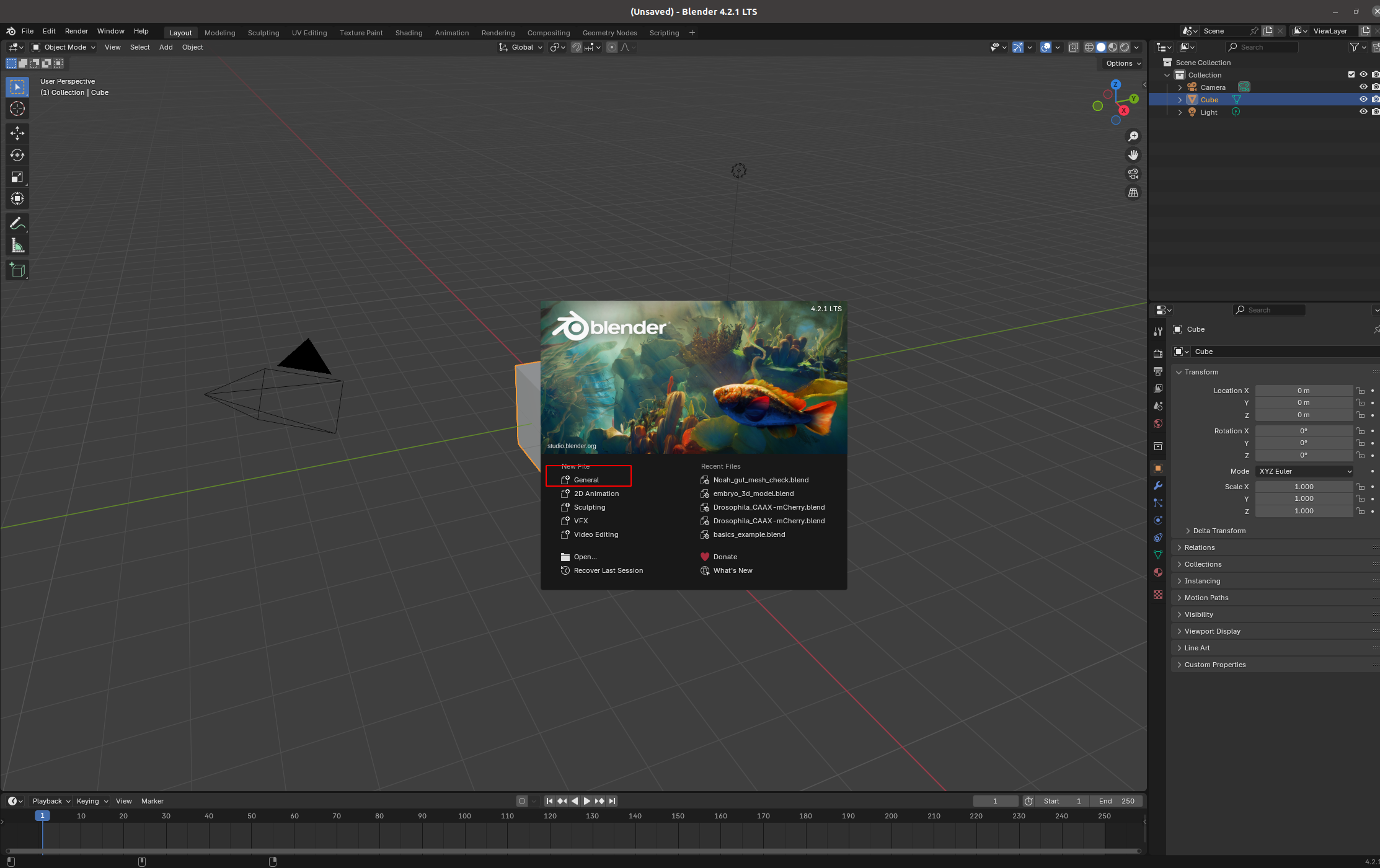

Start launching Blender and opening a new, empty file, and save it to disk with Ctrl+S:

⚠️ Save your .blend project to disk before using the add-on. Otherwise, Blender may crash!

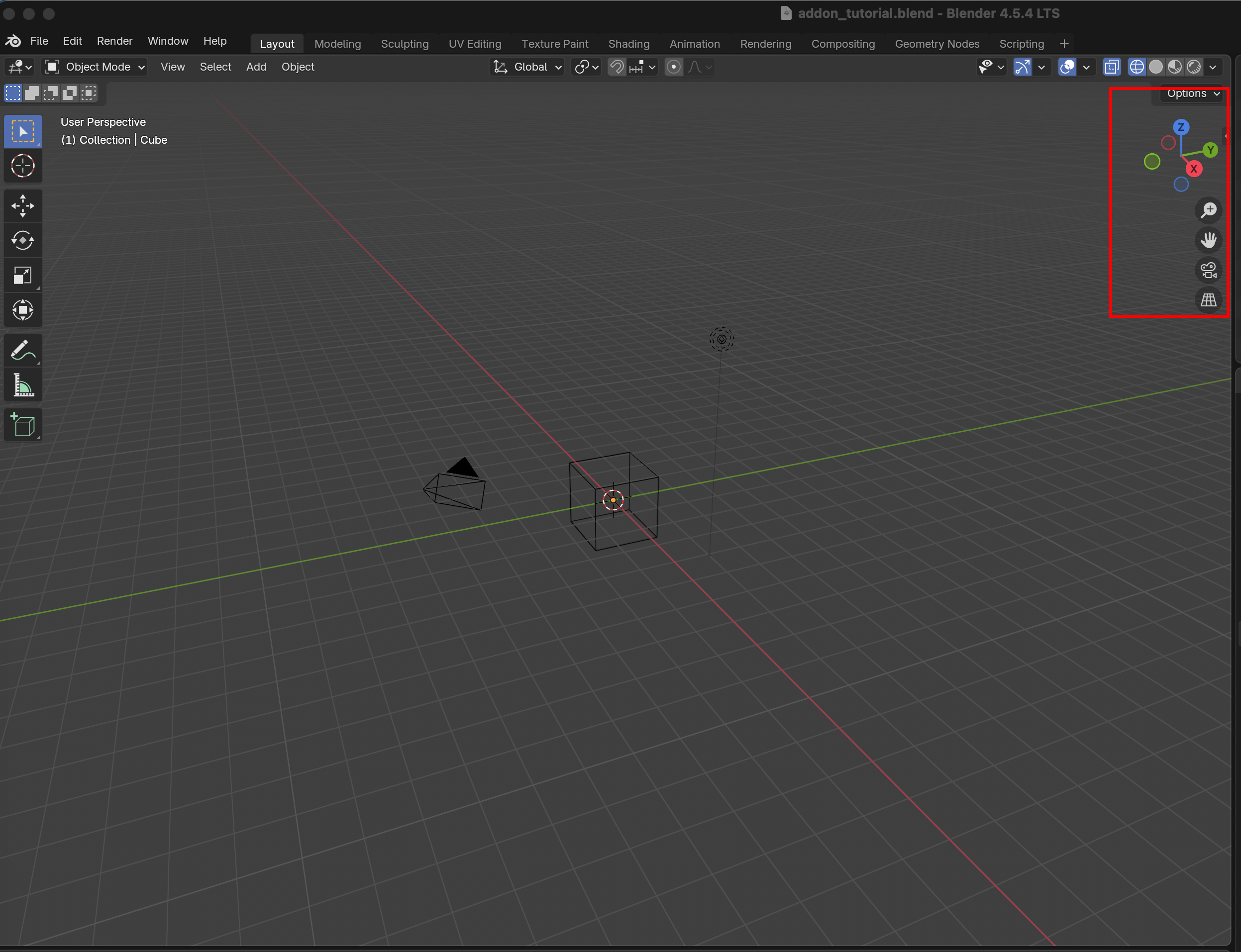

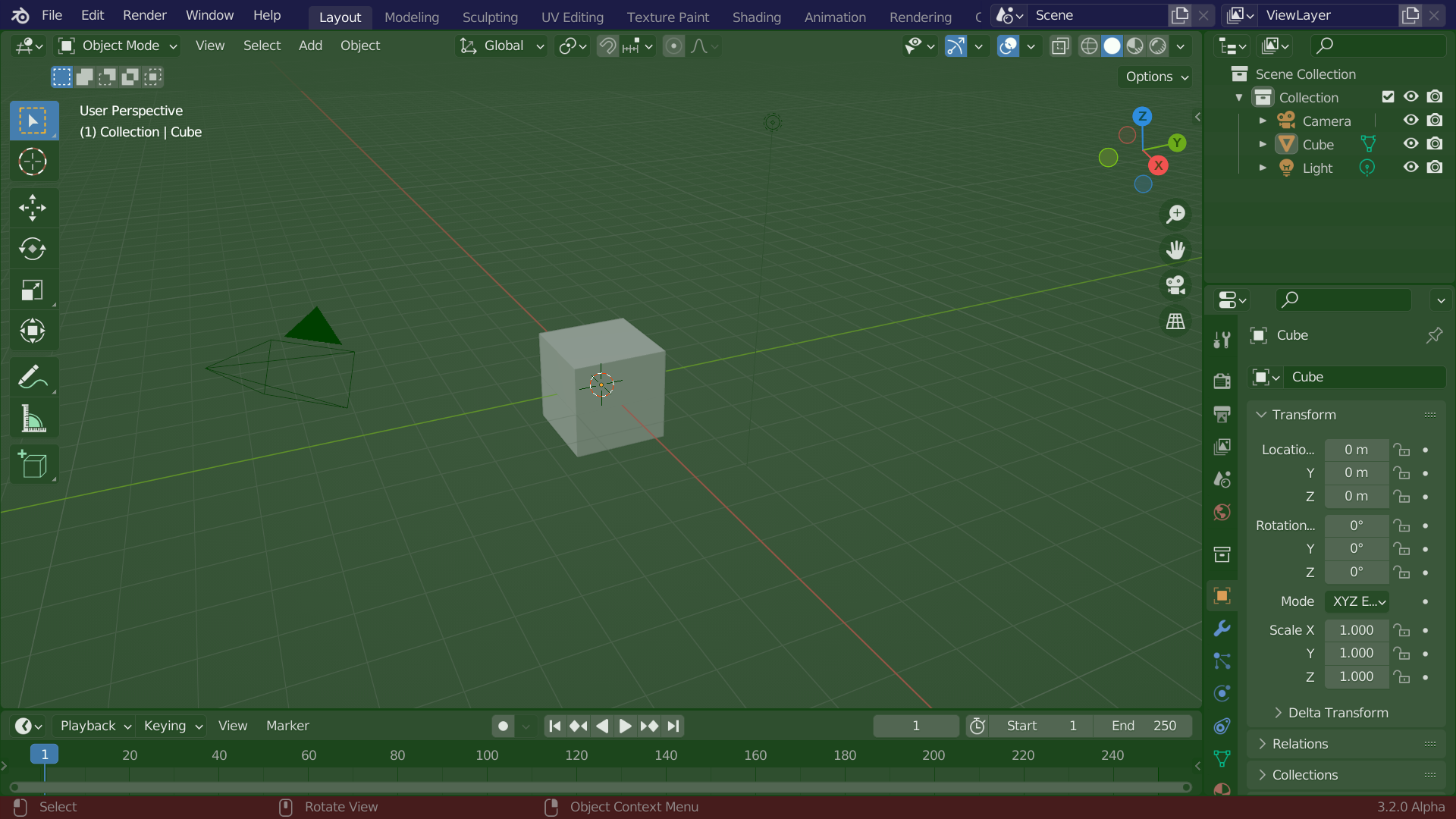

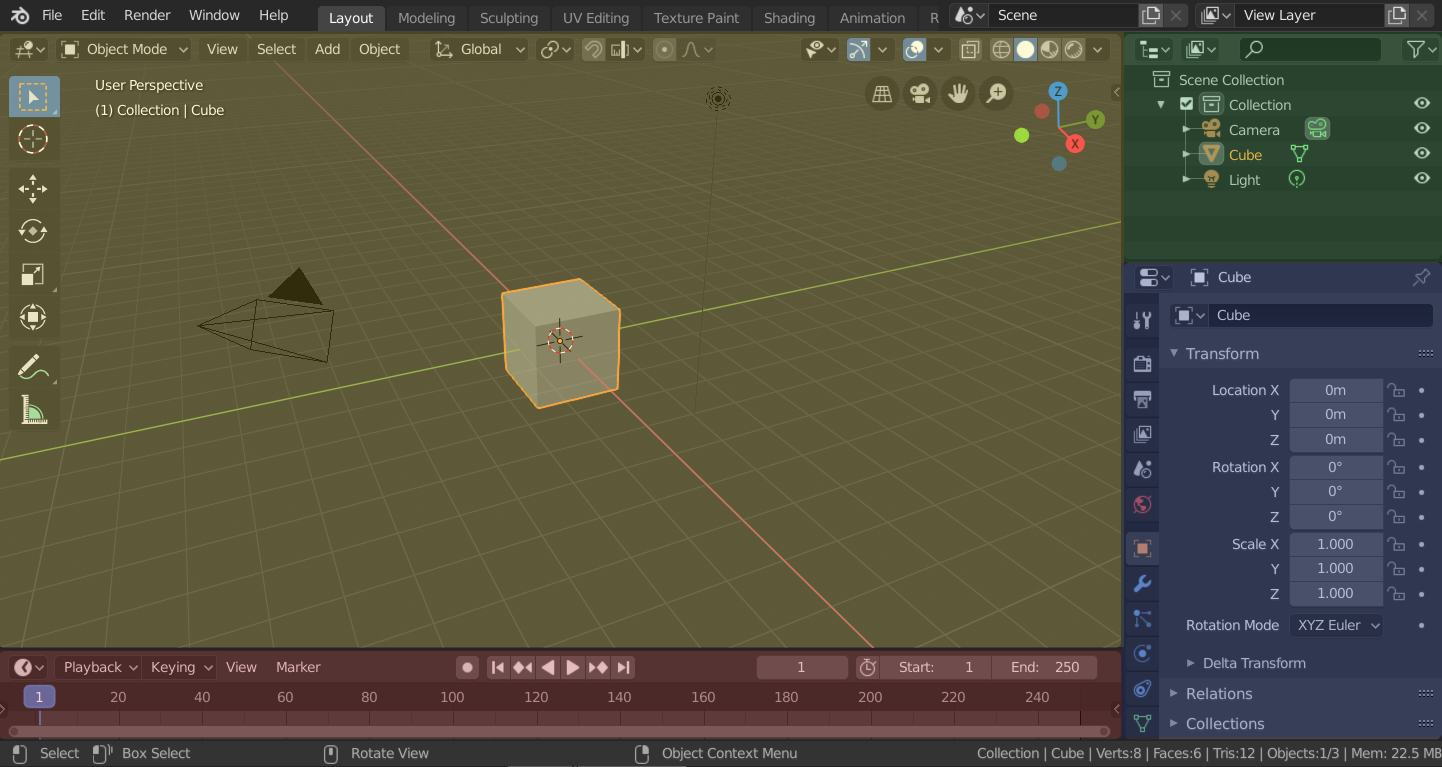

Your blender interface has three main parts: - Top bar with the “File” menu for opening, saving, and exporting models, and the choice of the different “Workspaces” - “Areas” in the middle, your workspace - “Status Bar” at the bottom, shows relevant shortcuts and messages

Polygonal meshes

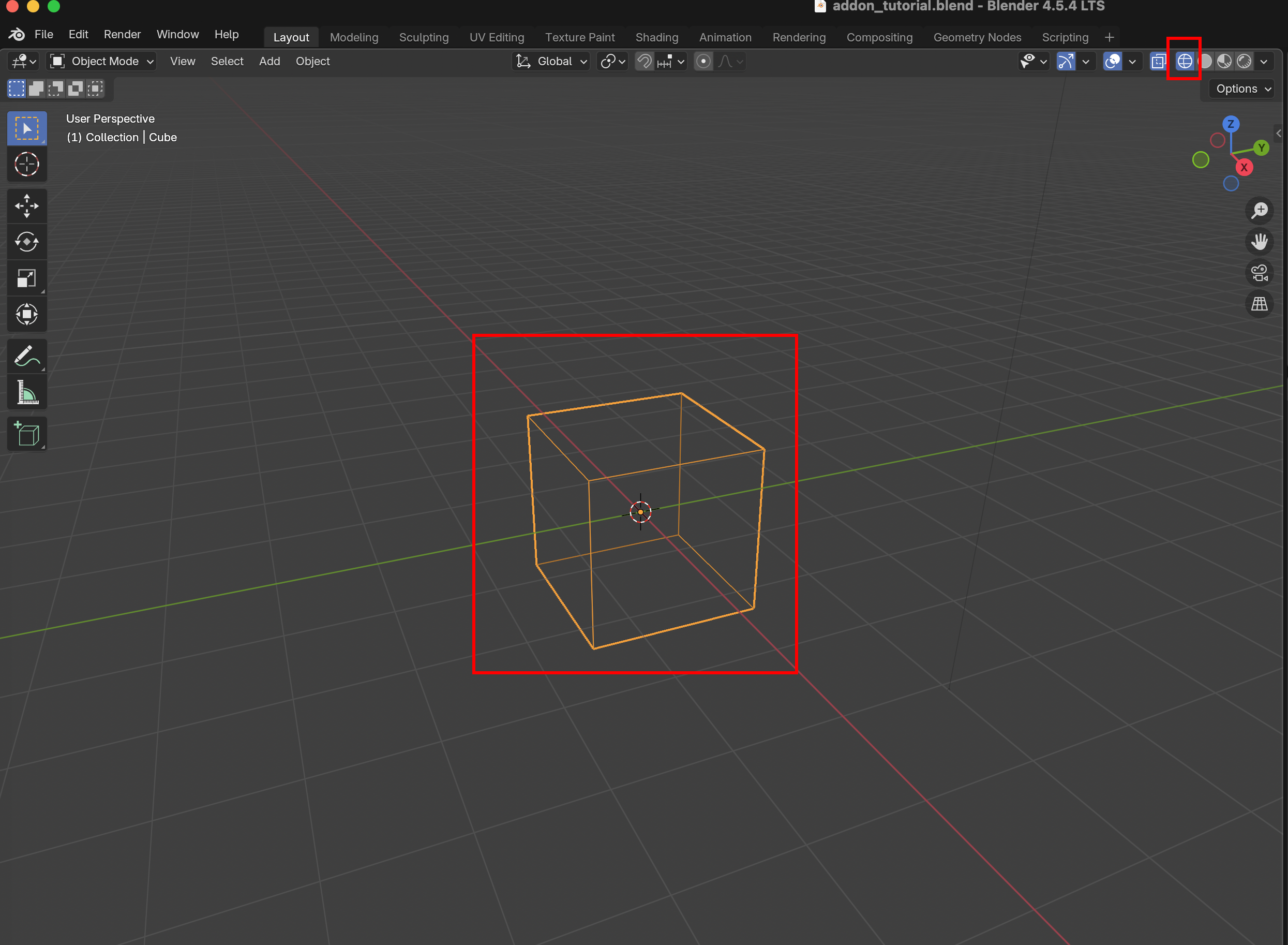

Blender represents surfaces in 3D as polygonal meshes: collections of points (vertices), edges, and faces. You can see the vertices and faces by selecting the “Wireframe” display option:

Import a mesh

Meshes can be saved and loaded in the .obj format, and you can use external tools to create and edit meshes. Try importing a mesh, like (Drosophila_reference.obj) from the test dataset. You can either drag and drop it into blender, or click “File -> Import” on the top left.

Important: axis order When importing a mesh into Blender, you have to choose how Blender interprets the \(x,y,z\) axes. It is important to keep this choice consistent - “Forward axis: Y” and “Up axis: Z”

Workspaces

Blender has different “workspaces” for different 3d tasks, selected using the top bar. Right now, we are in “Layout”, a general-purpose workspace for viewing your blender scene. It has three main parts:

“3d viewport” (center).
“Outliner” (top right). Controls what is in your scene and how it is shown. You can toggle mesh visibility, rename, or delete them.
“Properties” (bottom right). This section contains several tabs. The most important ones for us are:
- “Scene”: This is where the add-on lives
- “Object”: set position, scale, visibility, of your meshes. Lock the mesh positions to avoid moving the accidentally
- “Modifier”: apply filters/transformations to your mesh, for example smoothing or remeshin

Important workspaces

On the top bar, you select the workspace. We will mainly use the following:

“Layout”: Loading and inspecting data, operating the add-on
“UV editing”: “unwrap”/project meshes into the 2D plane.
“Shading”: Visualization

Installing add-ons

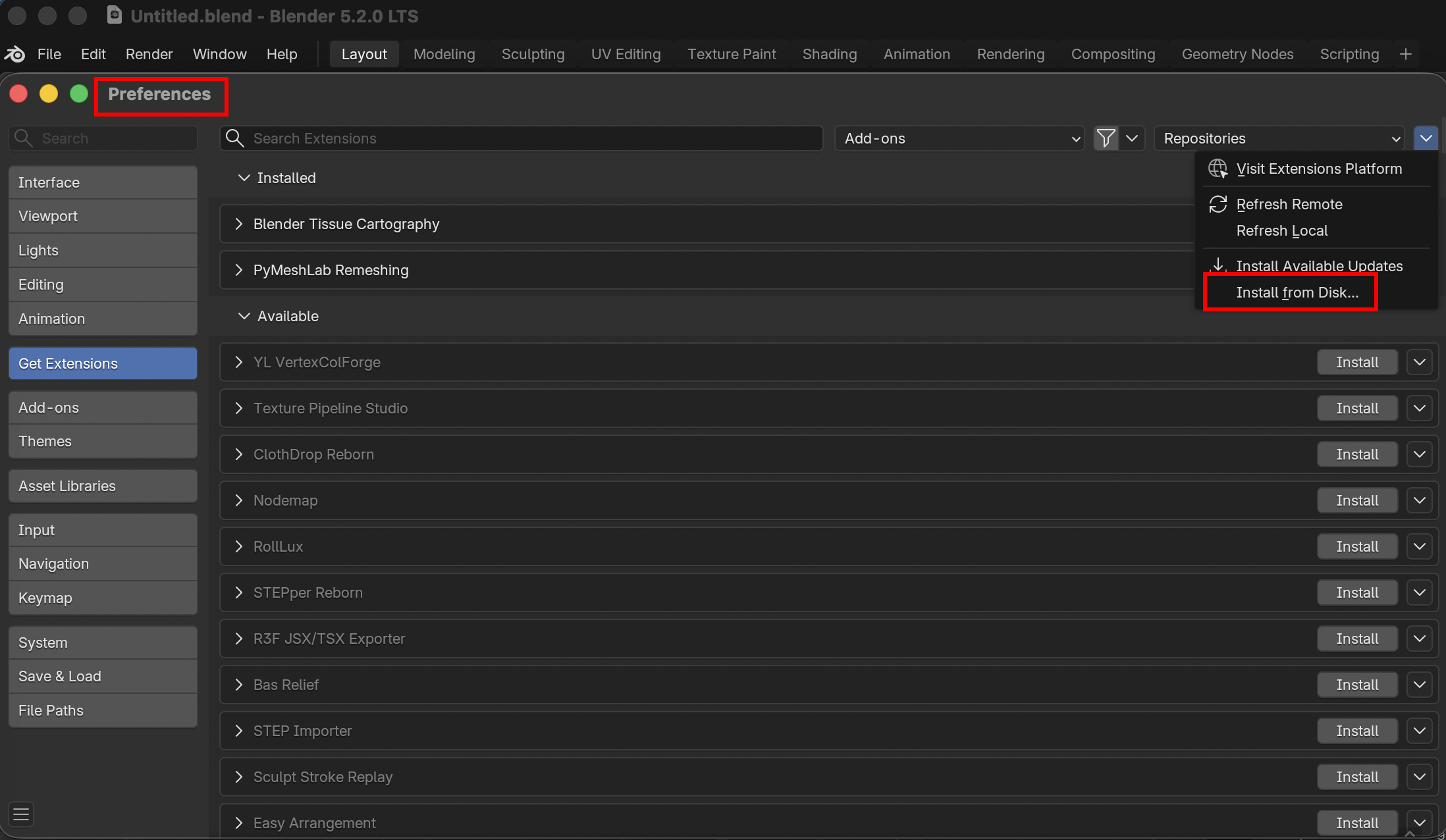

Now we install the add-on: Click “Edit -> Preferences -> Add-ons -> Add-on Settings -> Install from disk” and select the file you just downloaded. You may need to restart Blender. The add-on can now be found under “Scene -> Tissue Cartography (V2)”.

Data loading and visualization

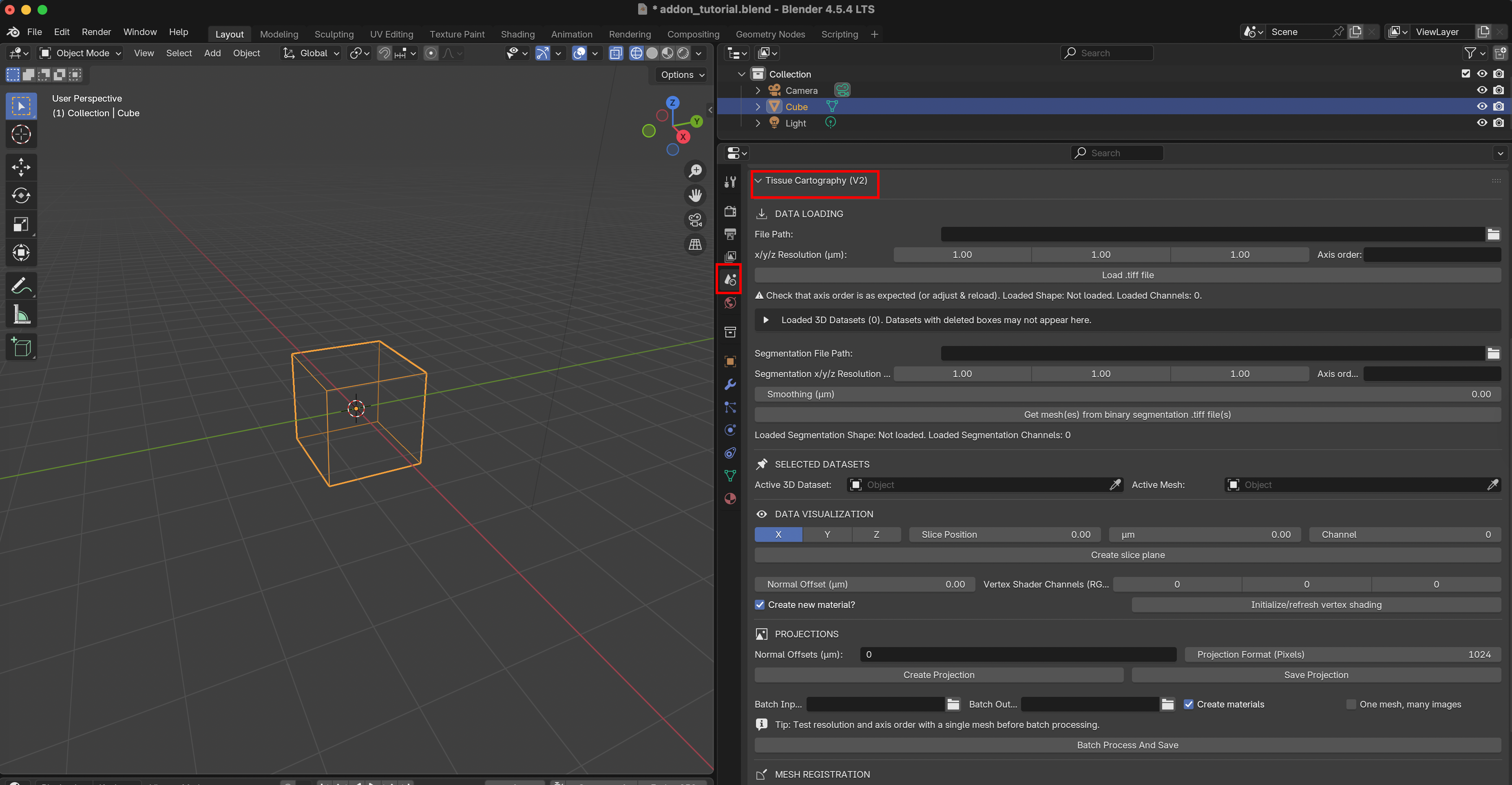

We will now go through the add-on user interface step by step.

Data loading

To import a 3D .tiff file, select the “File Path” and click “Load .tiff file”. You need to specify the X/Y/Z resolution of your image in \(\mu m\) for the X/Y/Z axes, and the order of the axes in the .tiff file (as a string like xyz or cxyz if you have multiple channels).

Multi-channel data The add-on supports both single-channel and multi-channel data (so .tif files with 3 or 4 dimensions). For time-series data, you need to provide one .tif per time point (see section on “Batch Processing” below).

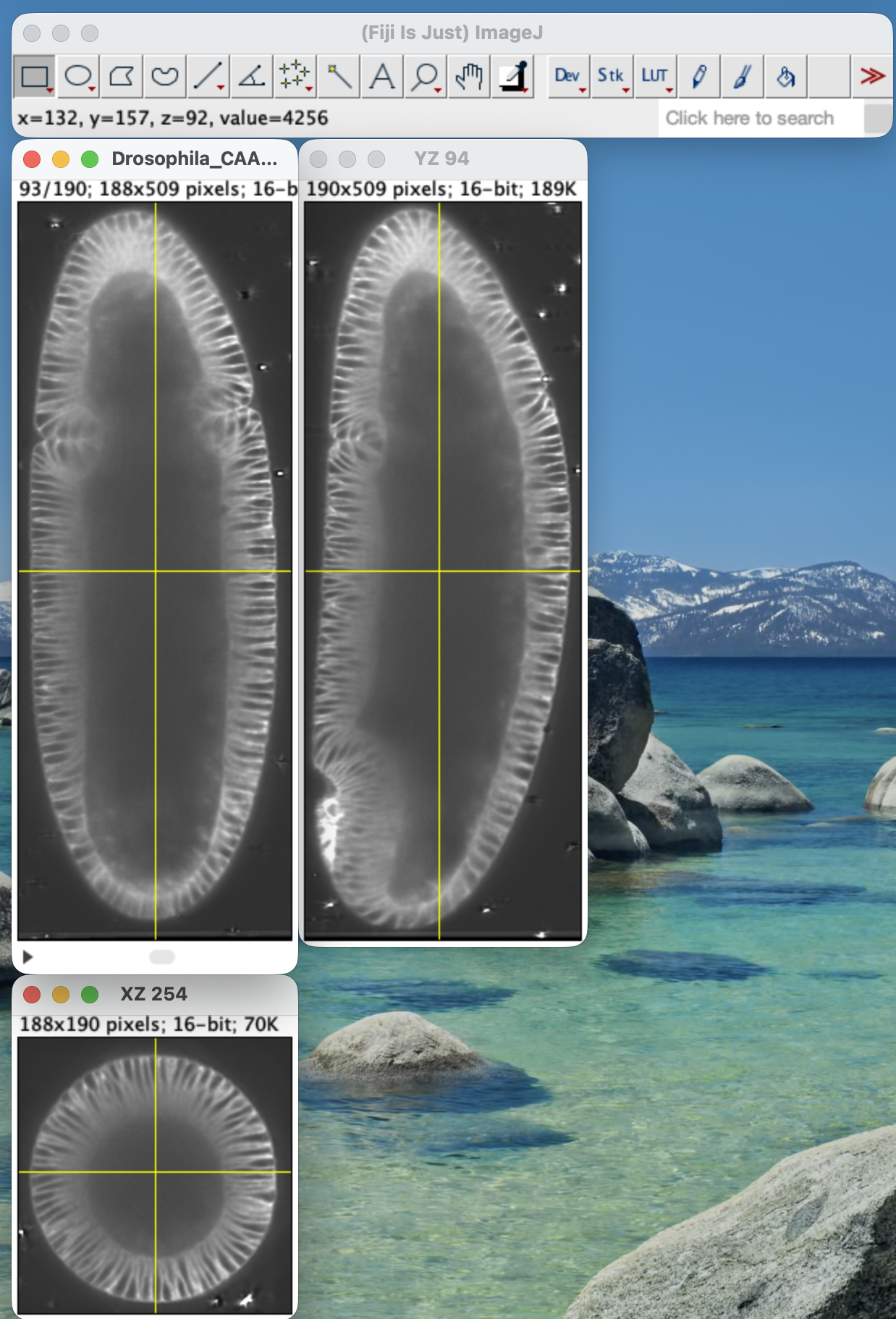

Let’s load the test dataset Drosophila_CAAX-mCherry.tif, an in toto image of the early Drosophila embryo with a fluorescent marker for cell membranes. The resolution is \(1.0 \mu m\) for all axes. You can open it in FIJI:

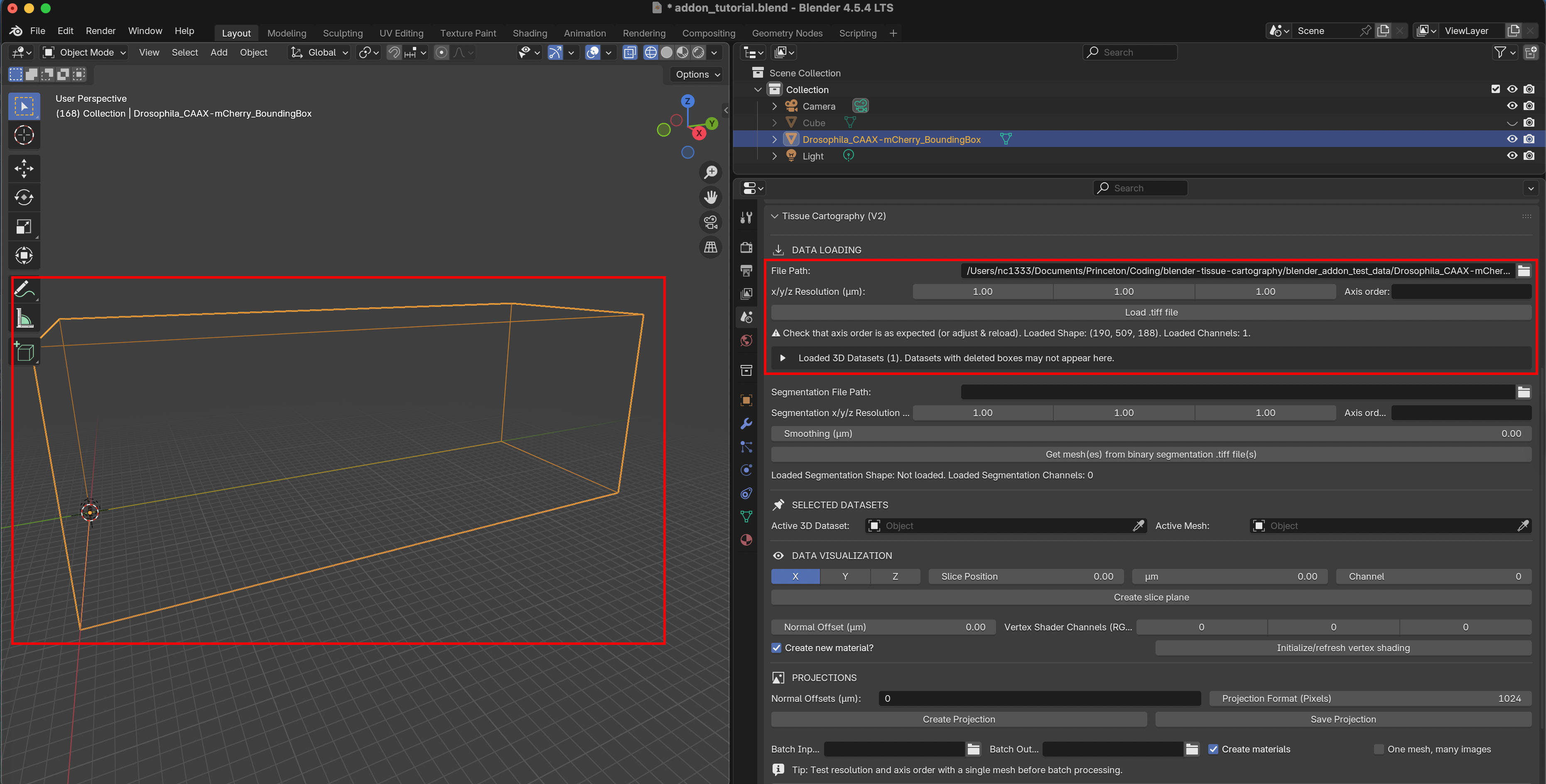

To load the dataset into Blender, click on “File Path” to select the .tif file. After import, you should see a BoundingBox mesh that represents the image volume:

Unloading data

In the add-on, each 3D image is associated to a BoundingBox. The 3D images are not saved to disk - you need to reload the image data if you restart Blender. The currently loaded datasets can be seen in the dropdown menu. You can unload datasets you don’t need anymore, especially if your computer runs out of memory. BoundingBox meshes stay in the Blender file even if you deleted the 3D image data.

⚠️ Axis order problems

Check the “shape” of 3D data loaded into the add-on (image bounding box). If it looks off, adjust the axis order and/or spatial resolution. For instance, if the Z-axis of a confocal image stack is not correctly recognized, the image will look “squashed”.

Loading a segmentation

Next, we need to load the “surface of interest” (SOI) we want to extract from the 3D data and project to 2D. You can do this in two ways:

Import a surface mesh created with external tools.
Load a 3D segmentation.

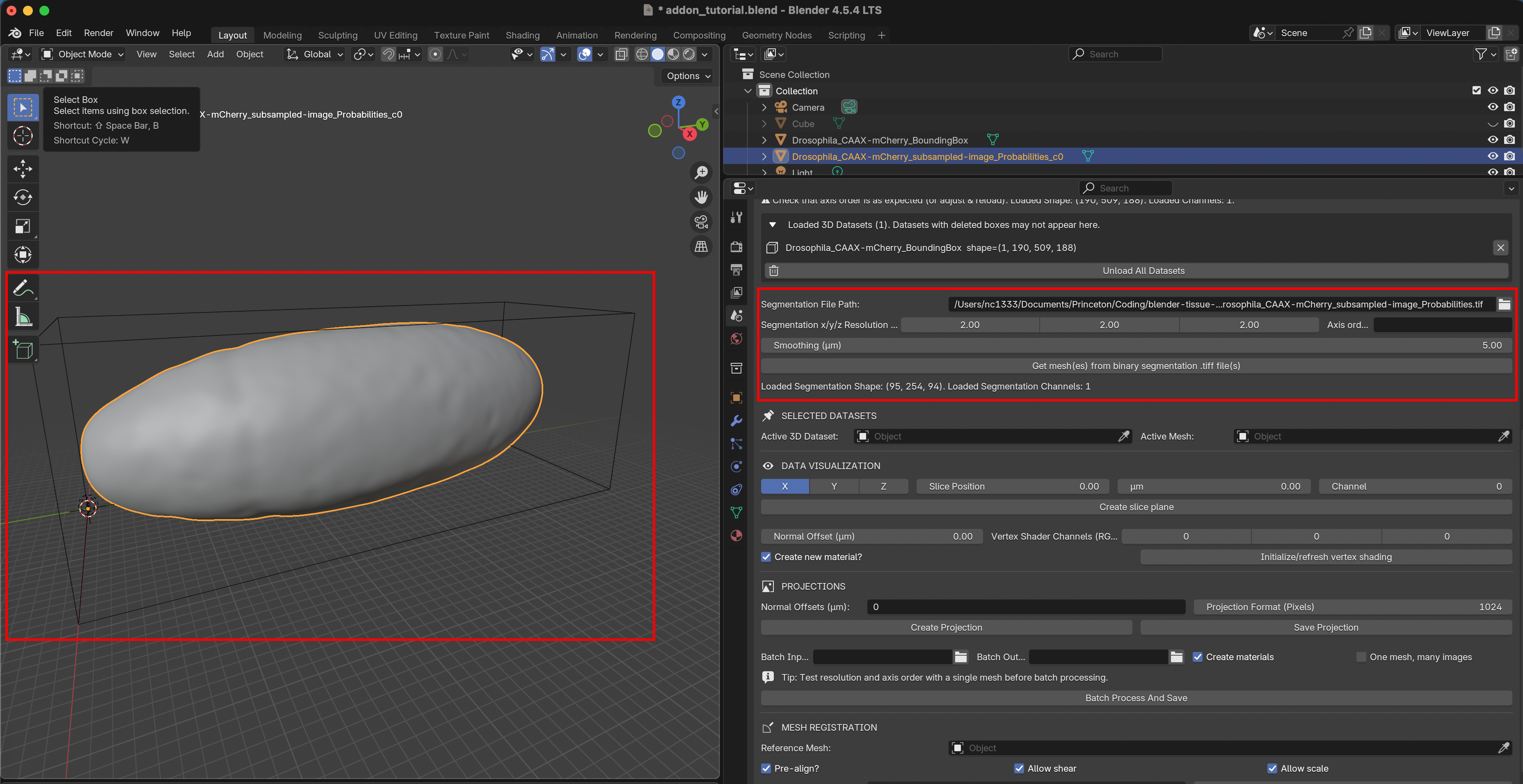

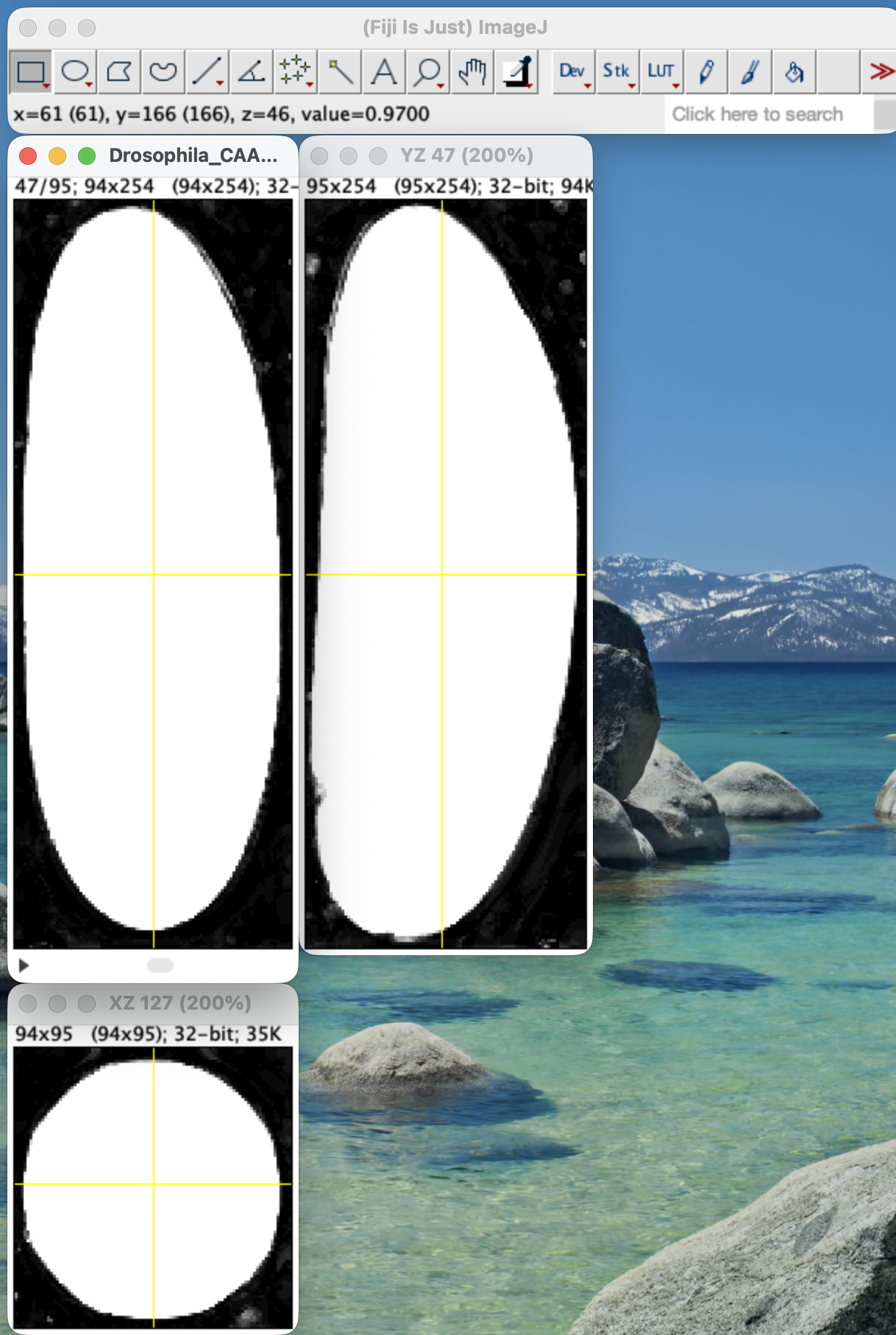

Let’s load the example segmentation Drosophila_CAAX-mCherry_subsampled-image_Probabilities. It is a 3D .tiff with black and white values, indicating the “outside” and “inside” of the embryo:

The resolution of the segmentation .tiff can be different from the 3D image (often, you downsize images, so the segmentation software is more rapid). For this dataset, the segmentation’s resolution is \(2.0 \mu m\) for all axes. With the smoothing parameter, you convert the “pixelated” 3D segmentation into a smooth mesh.

After loading the segmentation, the add-on meshes your surface using the marching cubes algorithm. You should now see the surface of interest inside the image bounding box:

⚠️ What type of segmentation do you need?

The add-on expects a segmentation of a 3D volume of which the surface is the boundary (e.g., the sphere is the boundary of a solid ball). The “inside” should be 1 and the outside 0. You can also load a segmentation with multiple labels (which will create multiple surfaces). Do not segment the pixels belonging to your surface directly (except if you want to use the “open surface” workflow below).

This repo does not contain any image segmentation tools as excellent software is already available. See the tutorial appendix for how to use Ilastik to segment out your surface of interest. For Python users, the library includes the Morphsnakes algorithm for segmentation. Below, we will also cover remeshing: operations that improve the quality of your mesh, and can make tissue cartography run much smoother.

Segmentation and meshing for open surfaces

If you have an open surface that is not the boundary of some solid volume (e.g. a thin, floating membrane), you need to use a different approach:

From a surface segmentation, extract a cloud of points on the surface.
From the point cloud, create a triangular mesh, for example using Poisson surface reconstruction.

Please see this tutorial. The remeshing add-on allows you to do surface reconstruction from a point cloud directly in Blender. Note that Poisson reconstruction is generally less reliable than marching cubes.

Loading a pre-computed mesh

If you already have a mesh, you can load it into Blender via drag-and-drop. Try it with Drosophila_CAAX-mCherry_mesh_remeshed.obj. If you create your mesh with an external tool, keep in mind:

Mesh units Importantly, the units of your mesh coordinates need to be in physical units, i.e. microns (and not pixels)!
Mesh axis order When importing a mesh into Blender, you have to choose how Blender interprets the \(x,y,z\) axes. It is important to keep this choice consistent - select “Forward axis: Y” and “Up axis: Z”

Big datasets and downsampling

For big volumetric datasets (>500MB or bigger), we recommend creating a downsampled version (reducing the reolution by 2x along each axis creates an 8x smaller dataset). Use the downsampled version to (a) segment out the object of interest (see tutorial below) and (b) quickly test the tissue cartography process. Once you are happy, load the full size data (don’t forget to change the resolution). Downsampling can be done in Fiji.

Selected datasets

You can load multiple surfaces and 3D images into Blender at once. The “Selected datasets” panel determines which one is currently active. The add-on operations are applied to the currently active dataset. Select the BoundingBox as active 3D dataset, and the embryo surface as active mesh.

Data visualization

Before we carry out cartographic projection, we can visualize the 3D data in Blender. This is also a good check whether data loading and surface import have worked correctly.

Orthogonal slices

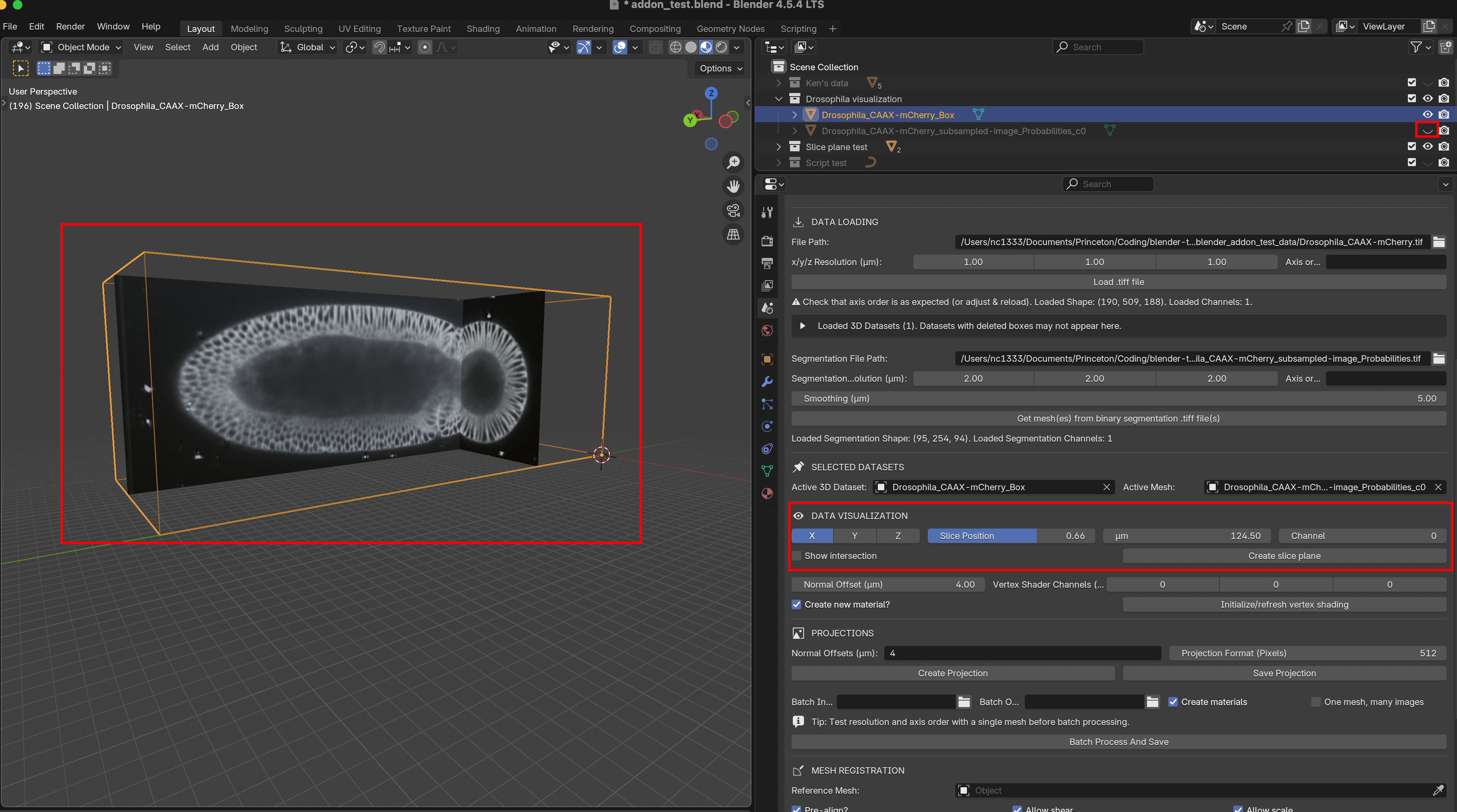

The first option is to show slices of the data along the X/Y/X axes. Use the slider to select the position of the slice and click “Create slice plane”. To preview the image data, select “Material preview” in the top right corner. Let’s toggle the visibility of the mesh off, so we can see the slices:

Vertex shading

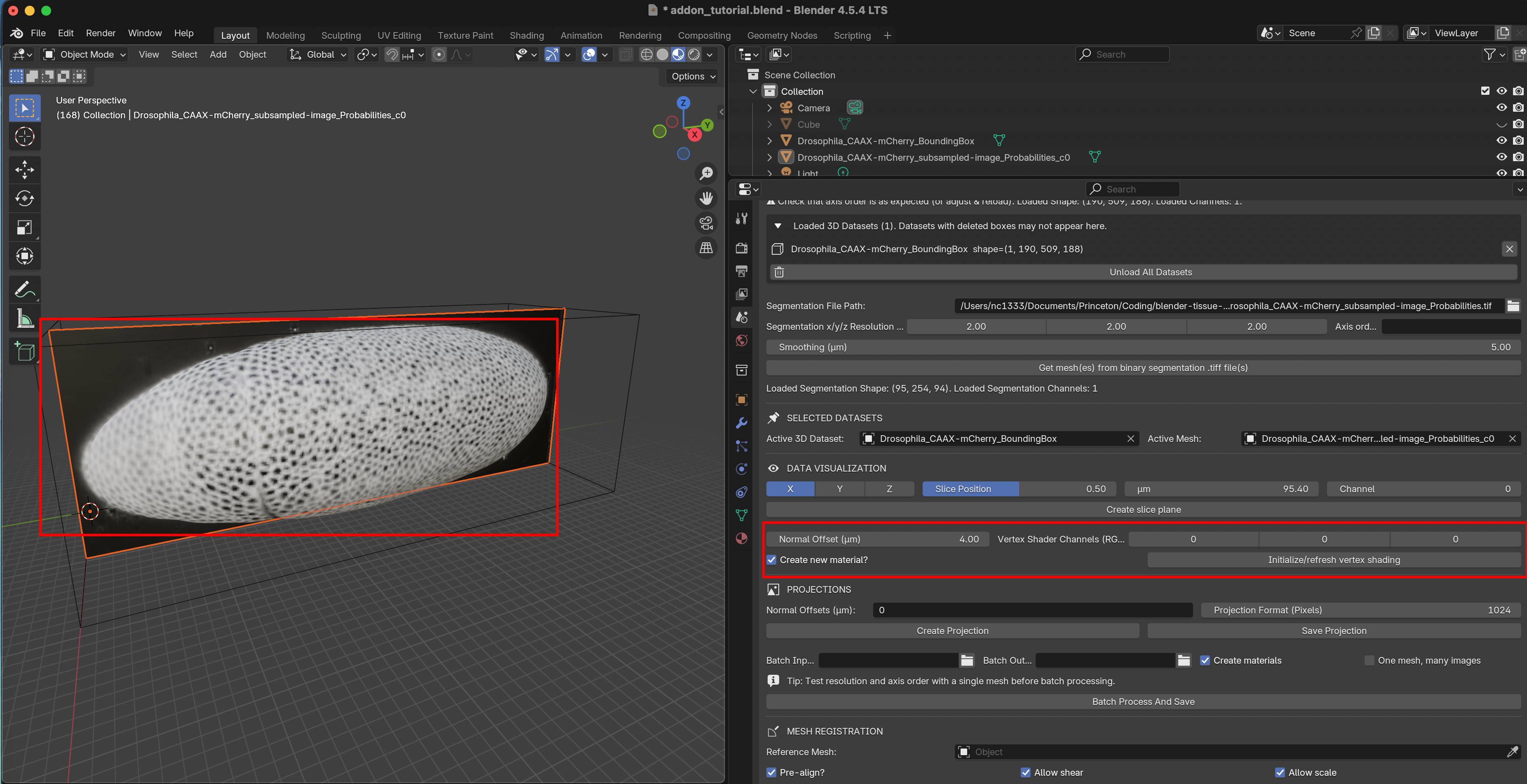

The second option is to project the image onto the vertices of the mesh to generate a preview. The mesh typically has fewer vertices than image pixels, keeping things fast, though vertex shading will appear blurry compared to the full projection. Fortunately, it is only a preview of the high-quality projections we will create below. The mesh is usually not as “highly resolved” as the full data (i.e., it has a smaller number of vertices than the number of pixels along each axis). This is good since it makes everything run faster, but it means that vertex shading will be blurry.

The Normal Offset controls which part of the image is projected to the mesh. For example, a value of “4” means that we show the intensity 4 microns inside the surface along the surface normal. This option allows visualizing different layers of the data, like peeling off “onion layers”.

3D Image - Surface alignment

Visualize mesh-image intersection

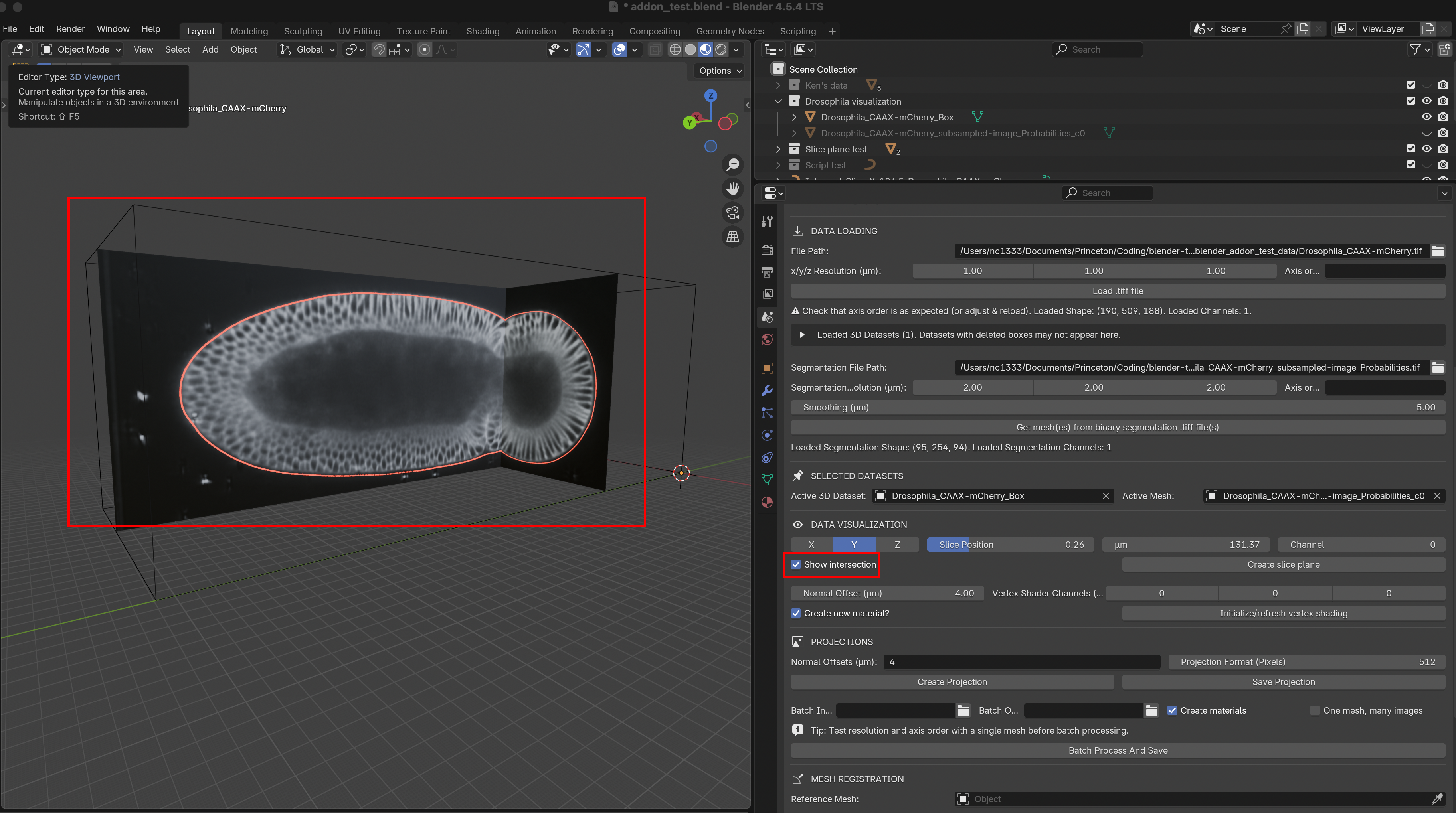

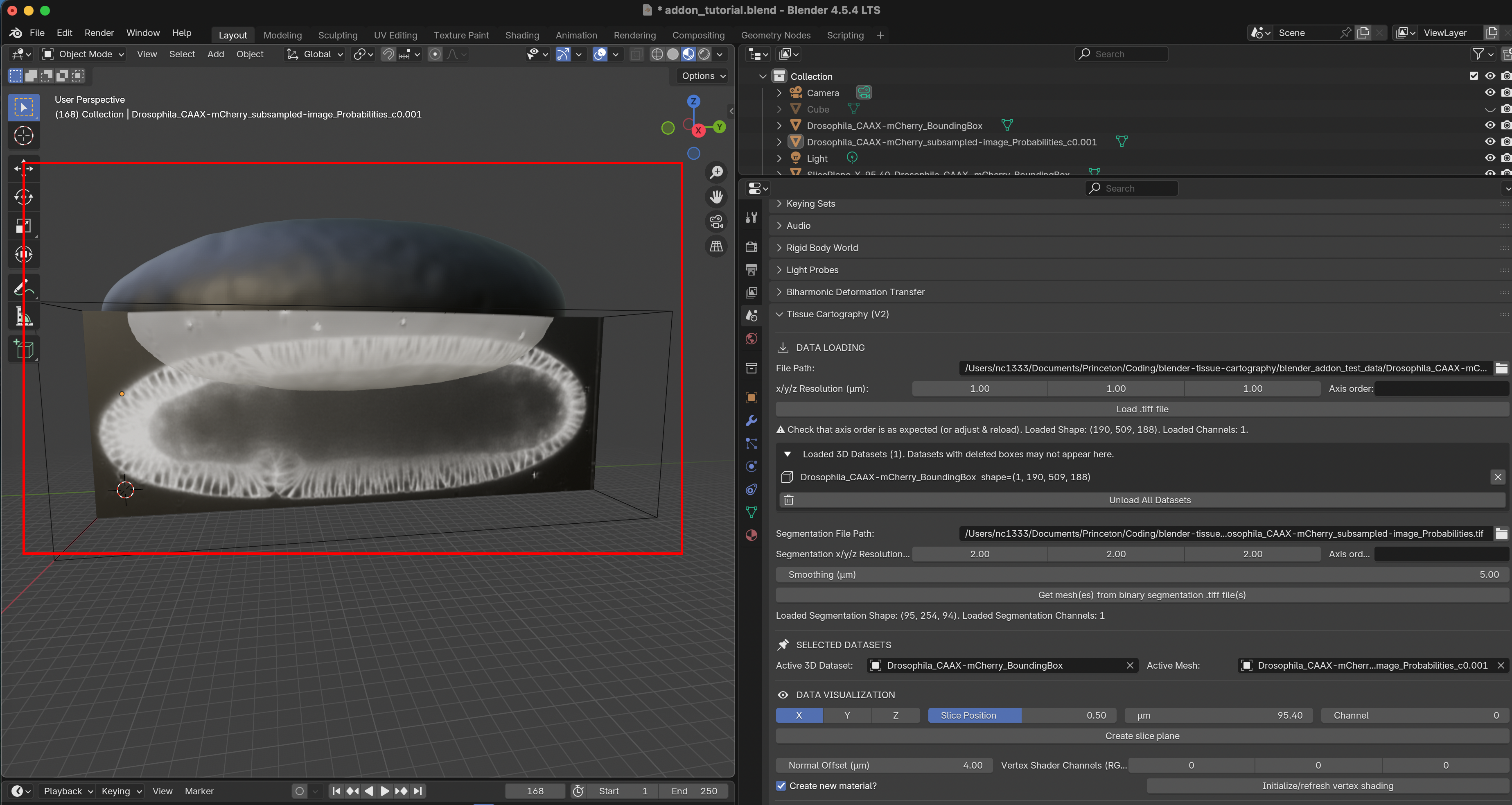

To project image intensity onto the surface, the add-on needs to know “where” in the image volume each surface point lies. It is essential that your image and your surface are correctly aligned. To make check this, you can use the show intersection option. It will show the intersection between the surface mesh and a slice plane in red, and updates interactively as you move or edit the mesh. Check “Show intersection” and create a new slice plane. Toggle the visibility of the surface mesh to “off” to see the intersection clearly:

The red line matches the edge of the embryo, so the alignment is good.

Bad alignment leads to bad projections

Move the surface mesh relative to the bounding box (press G) , refresh the vertex shading, and see what happens:

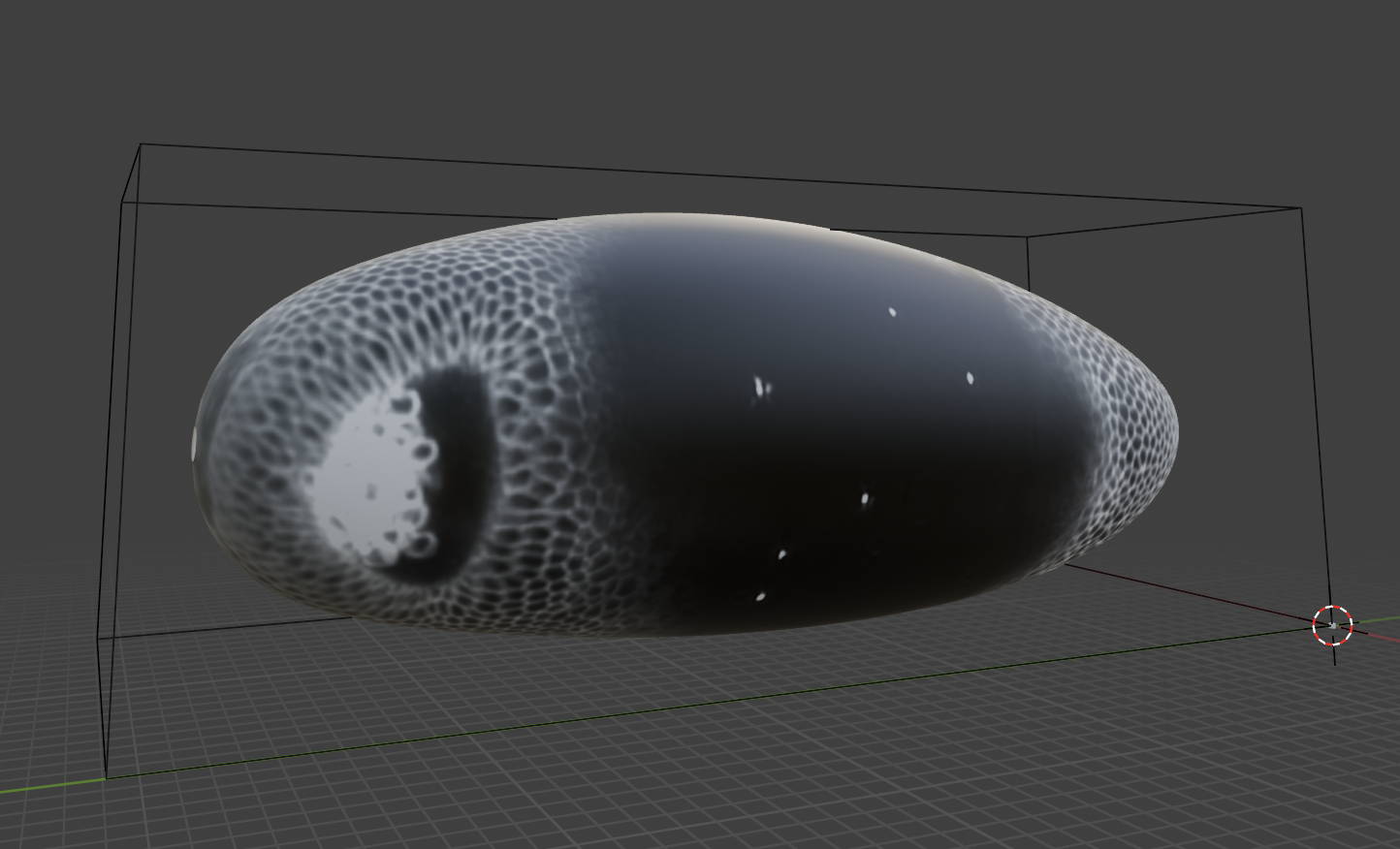

The surface is no longer correctly aligned with the image data, and so the wrong intensities get projected on the mesh. The part outside the image becomes black (missing data). If you move the BoundingBox and the surface together, they stay aligned. Incorrect alignment is a common source of problems. Press Ctrl + Z to undo.

More generally, your surface mesh needs to match the surface you want to extract. If this is not the case, you get images like this, where part of the mesh actually lies outside the embryo. One reason can be a bad 3D segmentation.

Fixing surfaces: remeshing and modelling

Surfaces generated by marching cubes from a 3D segmentation are often rough and have poor triangle quality — many small, elongated triangles. This can degrade the performance of cartographic projection algorithms and downstream analysis. Before UV mapping, it is good practice to remesh the surface to get uniformly-sized, well-shaped triangles. Blender has built-in remeshing tools under the “Modifier” tab (Remesh modifier) and under “Sculpt Mode -> Remesh”.

In the Sculpting and Modelling workspaces, you can also edit the mesh to fix segmentation errors, or fill holes in meshes.

How fine should your mesh be?

Your mesh should be sufficiently “fine” to smoothly follow the surface you want to capture, but not more. Importantly, the resolution of your projection does not depend on how fine your mesh is! You can get a high-resolution projection with a coarse mesh.

Optional: PyMeshLab Remeshing add-on

Blender’s algorithms are, however, not built for meshes extracted from 3D Image data. For example,Blender remeshing fails if your mesh is not closed/watertight. For more control, the PyMeshLab Remeshing add-on (optional install, see Installation above) exposes additional filters from MeshLab directly in Blender under “Scene -> PyMeshLab Remeshing”.

⚠️ PyMeshLab can fail to install / crash blender on some systems. If that happens to you, skip this optional step.

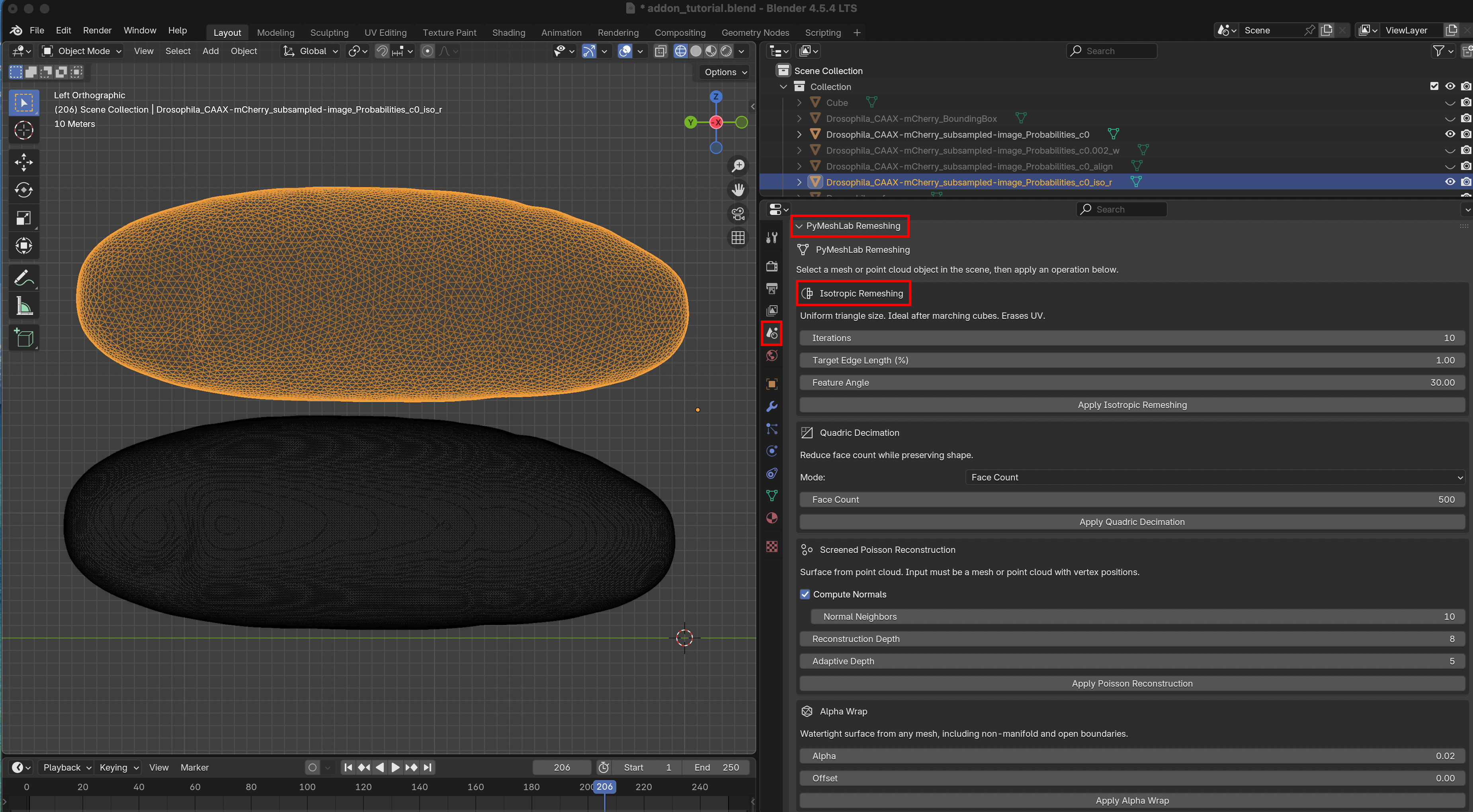

The add-on provides five operations. Select a mesh in the scene, adjust the parameters, and click the button — the result is created as a new object, leaving the original intact.

Isotropic Remeshing. Isotropic Remeshing is the most useful operation after marching cubes. It redistributes vertices to produce uniformly-sized triangles while preserving the overall shape. The key parameter is the Target Edge Length (%), which controls the desired edge length as a percentage of the mesh’s bounding-box diagonal — smaller values give a finer mesh. Iterations controls how many refinement passes are run (10 is a good default). Sharp creases sharper than Feature Angle are preserved.

⚠️ Isotropic remeshing erases any existing UV map on the mesh.

Other operations

Quadric Decimation — reduces the face count while preserving shape. Useful for speeding up subsequent operations on high-resolution meshes.
Screened Poisson Reconstruction — reconstructs a closed surface from a point cloud. Useful for the open-surface workflow (see above).
Alpha Wrap — generates a watertight hull from broken meshes.
Mesh Cleanup — removes duplicate vertices, null faces, unreferenced vertices, and non-manifold edges. A good first step if your mesh has defects.

Cartographic projection with the UV editor

Now we get to the heart of tissue cartography. We will create a projection that “unwraps” the surface of interest into a 2D plane, much like a map of the globe. This process is called UV mapping in computer graphics. For details, please take a look at the introduction to the UVs and to the UV editor on the Blender website. You should start UV mapping only once you are happy with the surface mesh and its alignment. Editing a mesh usually corrupts the UV map.

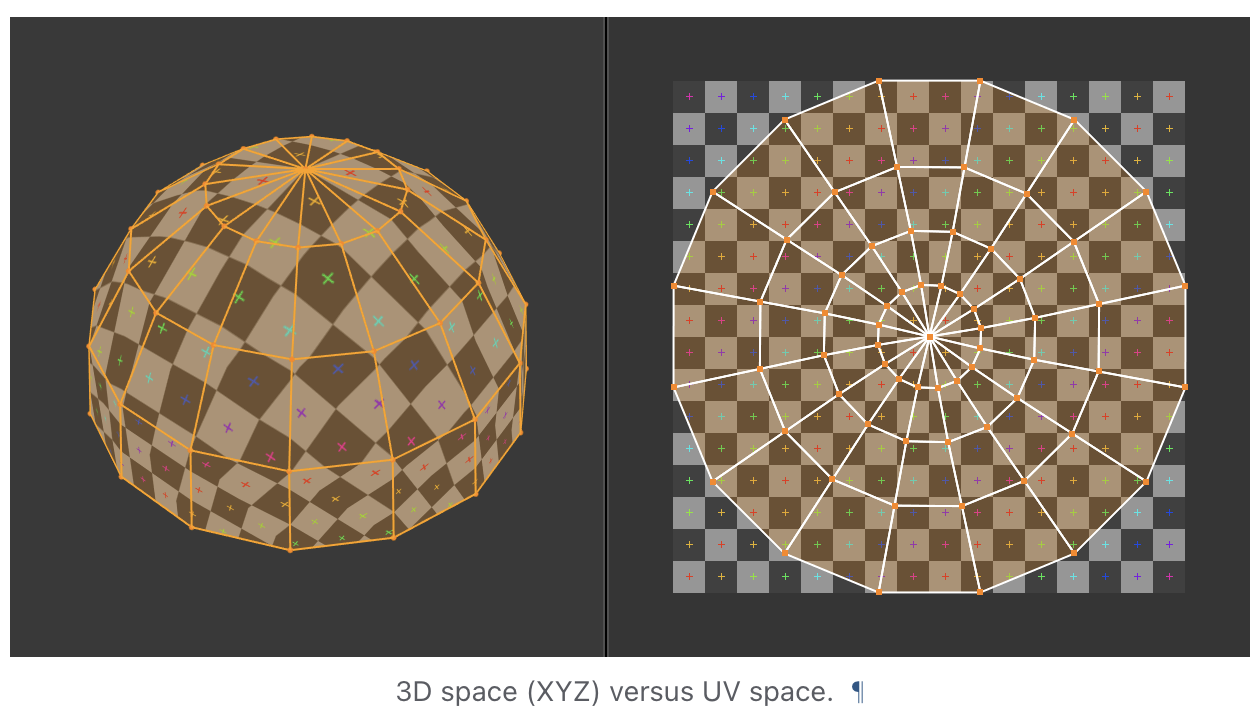

The UV map defines how your 3D mesh (coordinates X/Y/Z) is mapped to 2D (coordinates U/V, hence the name). Here is an example from the Blender website:

In computer graphics, it is used to map images from 2D to a mesh (which allows painting on 3D models in video games). Here, we use it for the opposite purpose: projecting 3D volumetric images to 2D.

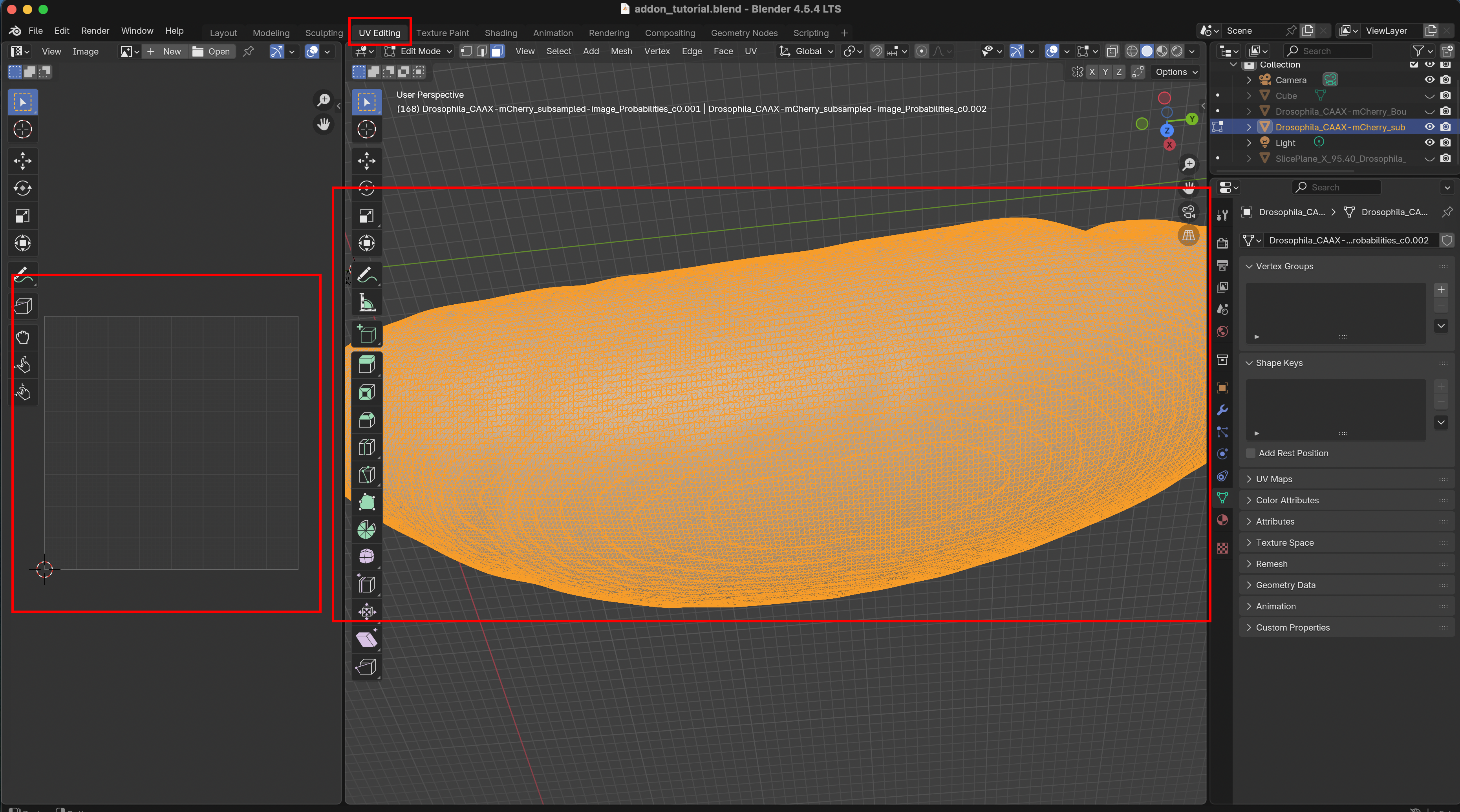

The UV Editing workspace

Switch over to the UV Editing workspace. On the right, you see your selected mesh, on the left its projection into the 2D UV square. At the moment, it is empty. Notice also that we are now in “Edit Mode” since we will edit a property of our mesh, the UV map.

The currently selected part of the mesh will be shown in orange. Note: for UV mapping, press 3 the A select all faces. 1 selects mesh vertices, and 2 edges. Blender has many methods for creating cartographic projections. Let’s select a fully automatic one: “UV -> Unwrap -> Smart UV project”:

On the left, we now see how out mesh was unwrapped into the UV square. Since the surface was originally closed, it must be “cut” into several pieces (called “UV islands”) to be mapped into the UV square.

More information on UV mapping can be found at the end of the tutorial in the “Appendix: UV mapping 101”

Exporting meshes

If you wish, you can export the surface mesh with its UV map, for example to load it into a Python pipeline created using the tissue cartography python library.

Click on “File -> Export” and export as .obj:

Important: export settings

Always export as .obj
Choose “Forward axis: Y” and “Up axis: Z” - this keeps the axis order consistent.
Tick the box that says “Include Selection only” - otherwise you might export multiple meshes
Include “UV coordinates” and “Normals” - this data will be important in the following
Select Triangulated Mesh - the algorithms in this software package are designed to work with triangular meshes.

Making projections

Projections

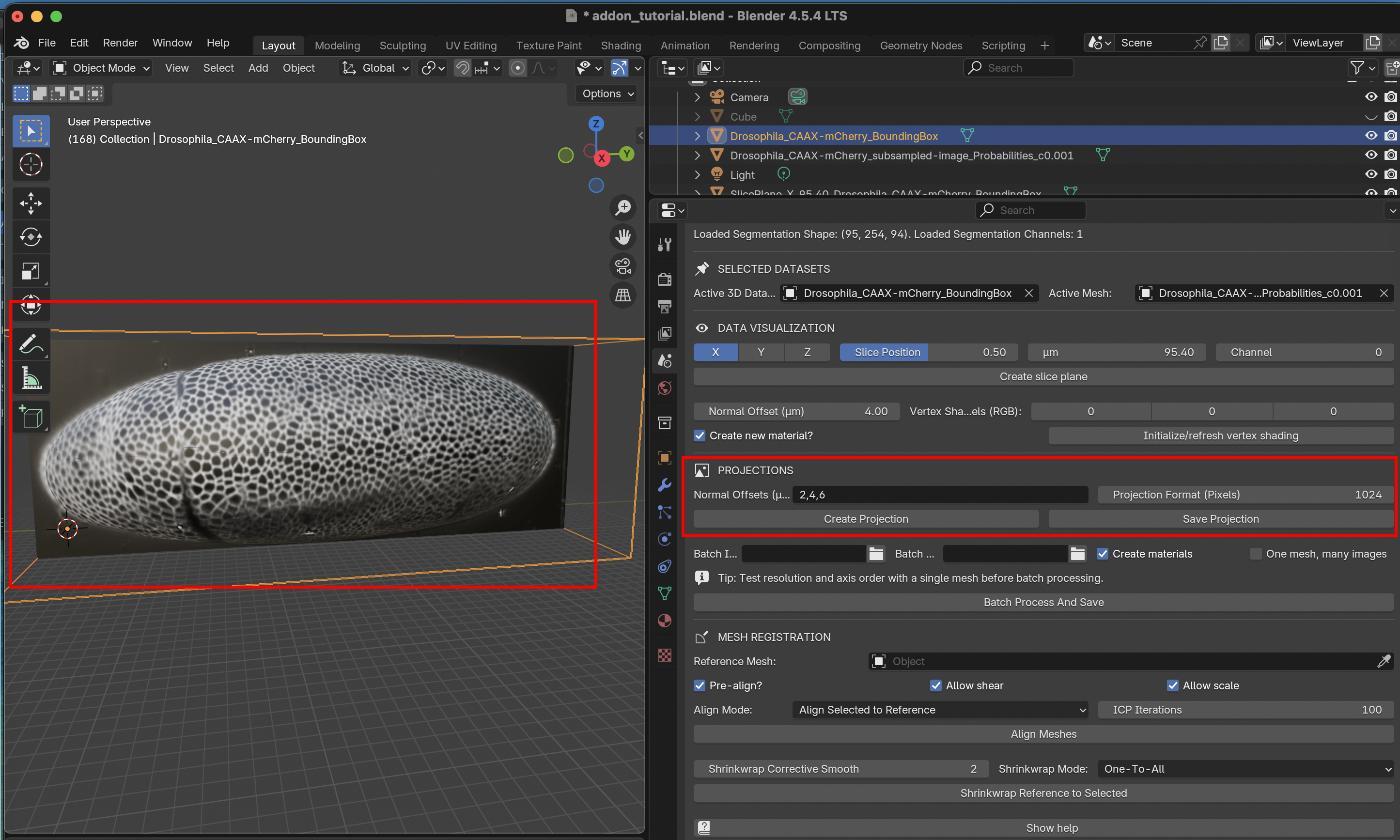

Now that the surface has UV map that defines how it is unwrapped, we can project the image intensity into the plane. Without a UV map, this process will throw an error.

First, select the normal offset(s). The add-on can create multi-layer projections, analogous to peeling off the layers of an onion. Each layer is offset inwards/outwards from the surface along the normal direction. Negative resp. positive offsets move inwards resp. outwards. To create a multilayer projection, enter multiple offsets separated by a ,, for example 2,4,6. This will result in a “z-stack” with a 2-micron spacing that follows your surface.

Next, select the pixel resolution. The output will always be a square image, in this case, 1024 * 1024 pixels. Make sure you have selected the correct mesh and 3D dataset, and click “Create Projection”. The computation can take a few seconds:

You should see the blurry vertex shading replaced by a high-resolution projection.

The projected data will remain associated to the mesh even if you close blender. However, running a new projection will overwrite it (you can make a copy of the mesh instead).

Saving projections

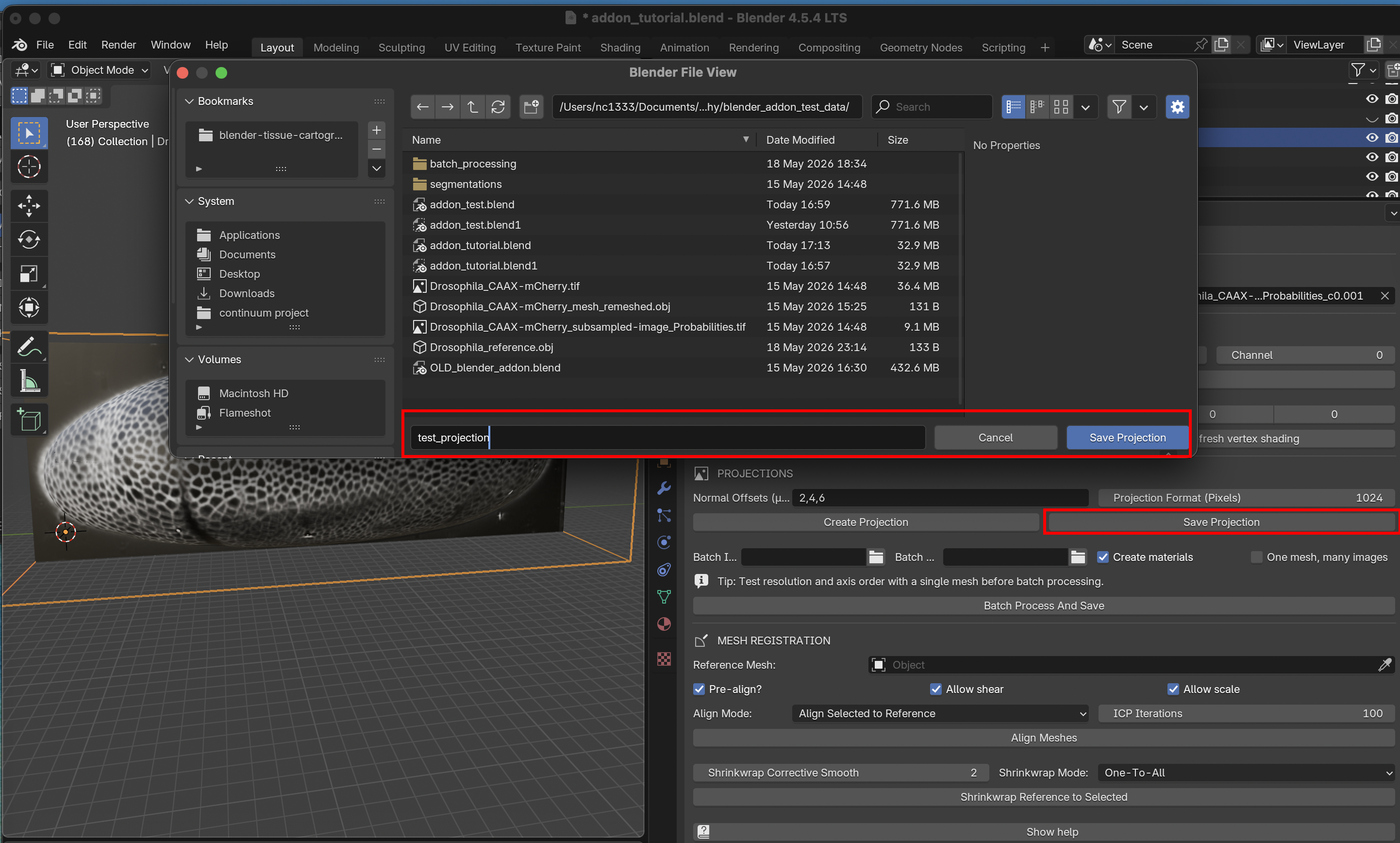

Use the “Save Projection” button to save the projections to disk as a multipage .tif. Saving creates a folder, which we will call test_projection:

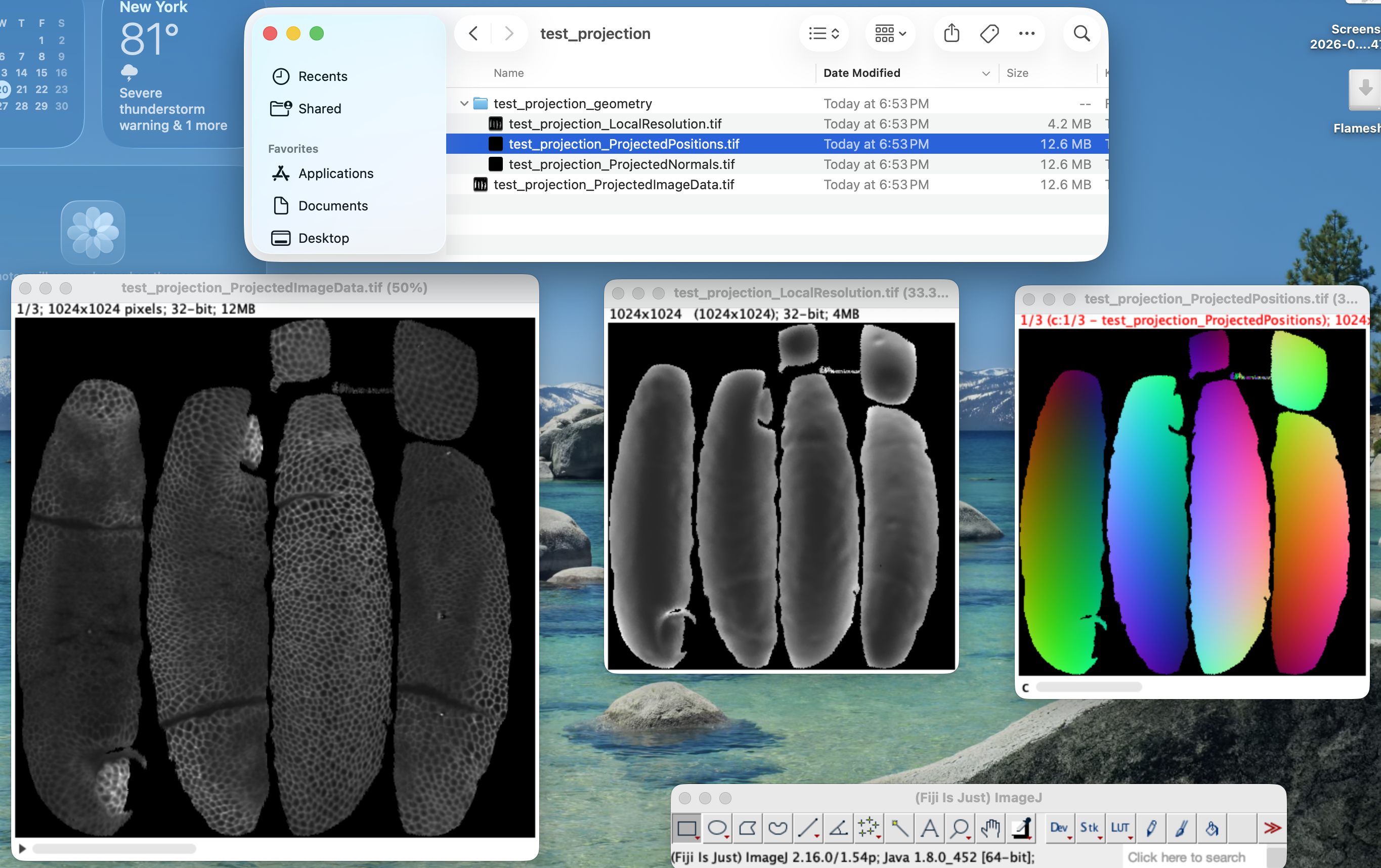

Let’s open FIJI and our file browser to inspect the files that were saved:

On the left, test_projection_ProjectedImageData.tif is a z-stack showing the projected image data at 2, 4, and 6, microns inwards from the surface defined by our mesh. To enable quantitative analysis, the add-on saves 3 .tif files with geometric information:

test_projection_ProjectedPositions.tif: the 3D X/Y/Z position of the surface in microns, for each pixel of the projected image data.
test_projection_ProjectedNormals.tif: the X/Y/Z components of the unit normal vector to the surface, for each pixel of the projected image data.
test_projection_LocalResolution: the “local resolution” in microns/pixel at each pixel.

Images 1 and 2 have 3 channels,for X/Y/Z, yielding an RGB image in FIJI. Using the geometry information, you can map positions in the projection back into 3D. For example, you may segment cells in the 2D projection, and then locate them back in 3D space. Using the local resolution, you can correctly compute the cell area from the 2D segmentation (multiply 2D cell area by the local resolution). For more details, see the methods paper.

Importantly, the projection is different from a usual microscopy image: because it is a cartographic projection, it can be distorted, like Alaska in a Mercator projection:

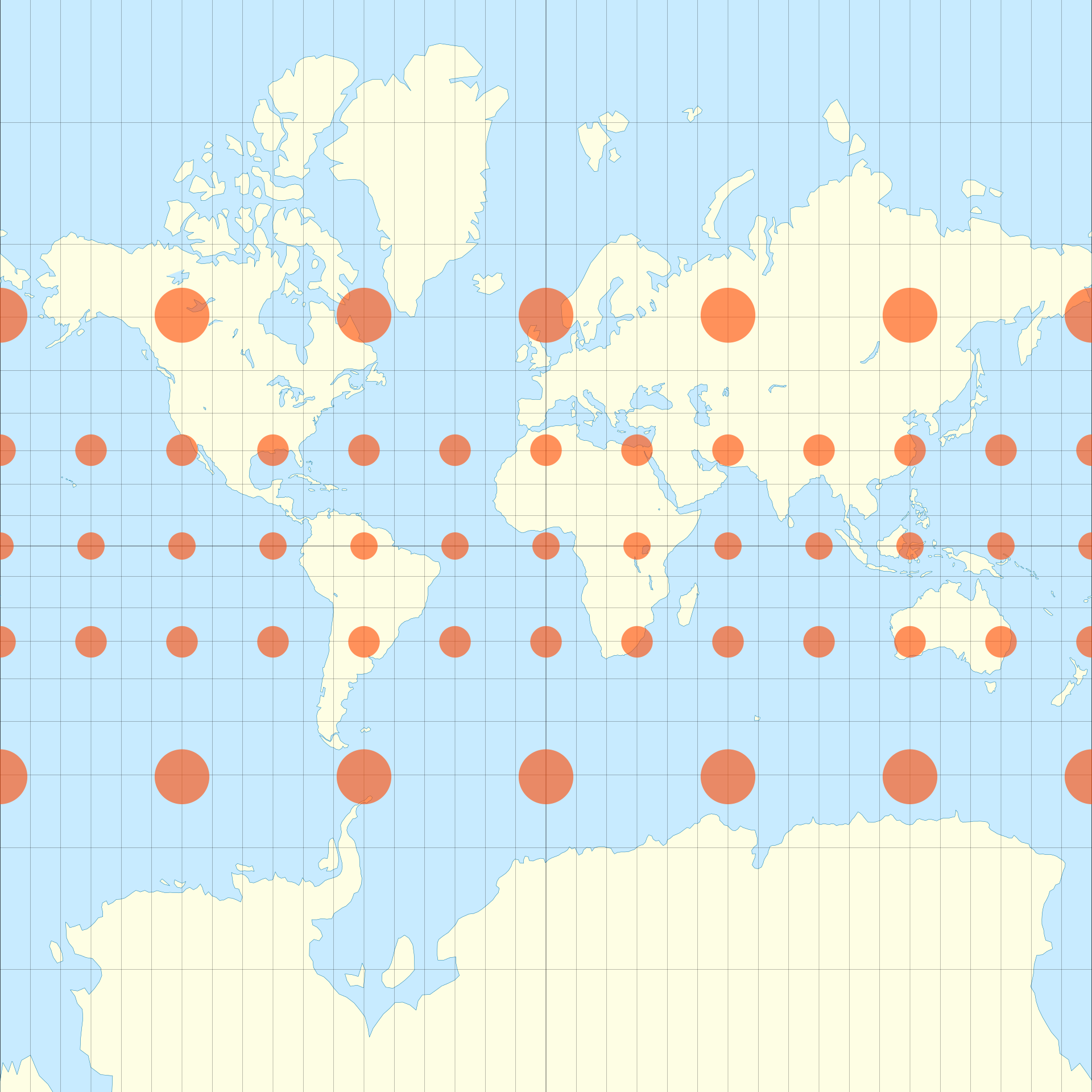

The circles on this map from Wikipedia indicate the “local resolution” of the map: where the circle is bigger.

⚠️ Stretch distortion

In addition to local scale change (area distortion), cartographic projections can also induce stretch distortion, characterized by a stretch axis and strength. This information is not saved to disk. Stretch distortion can be computed and compensated for using the diffgeo module from the Python library. We recommend using UV maps that minimize stretch distortion (“conformal” maps).

Batch processing

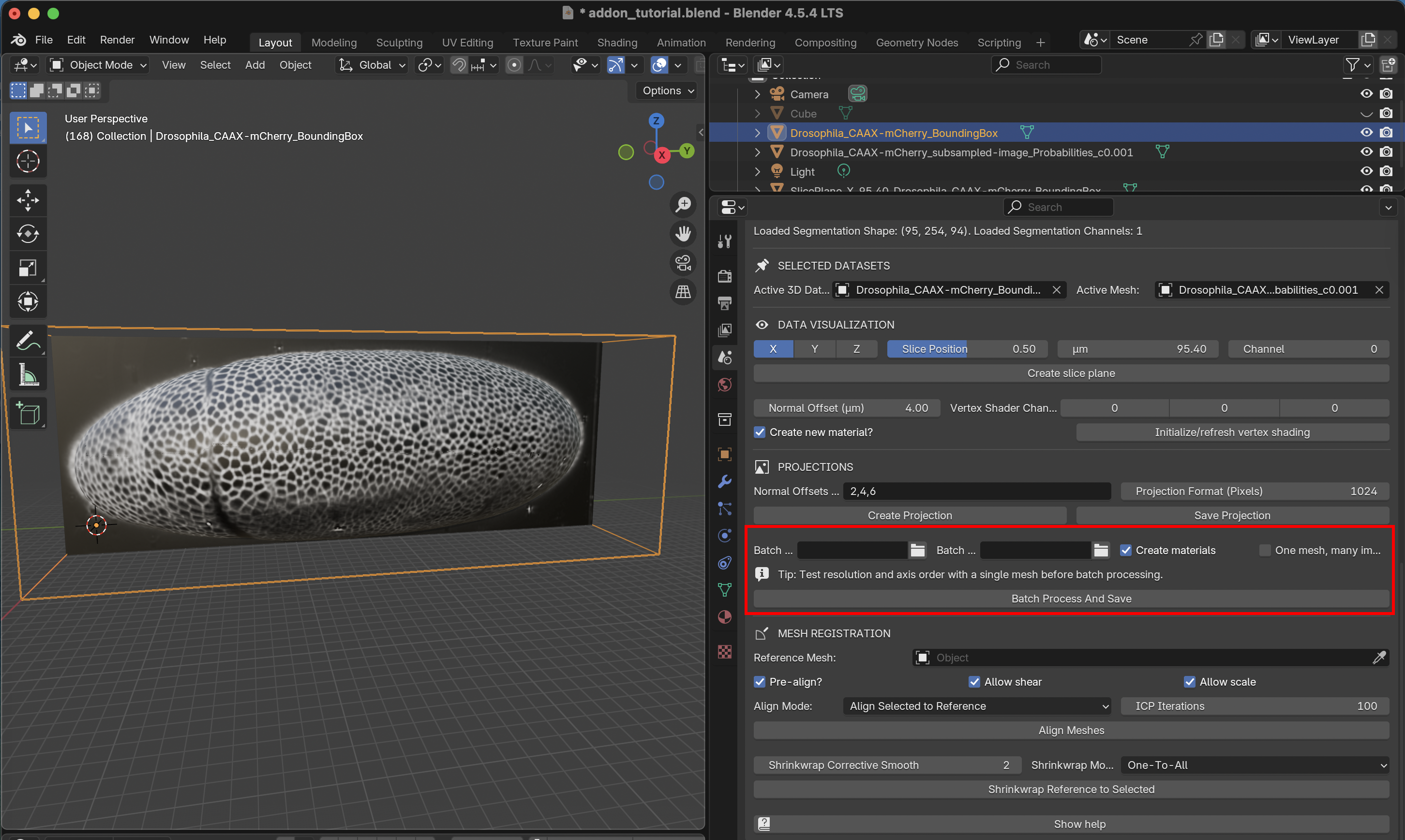

To process multiple datasets (for example, different frames of a movie), use the batch processing tool. It is best to test with a single mesh projection before running batch mode.

The tool works as follows

Load the surface meshes for all datasets into Blender. All meshes need to have a UV map (see below on how to create UV maps for multiple meshes, like frames from a movie)
The 3D images will be read in from the selected “Batch Input” folder one by one. All image datasets must have the same resolution and axis order.
Load at least one of the image datasets into Blender as a BoundingBox, and select it under “Selected Datasets” in the add-on. The Active 3D Dataset provides the spatial reference (position/orientation) and resolution. Axis order is taken from the Data Loading section.
The batch processing tool has two modes. Single-mesh mode (“One mesh, many images”): uses the active mesh for every file in the input directory. This is useful when the same surface is used across many image datasets.
If you do not check this option, you must Blender-select as many meshes as there are 3D images in the “Batch Input” folder. Blender-selected meshes will show up as orange in the viewport and outliner (top right corner). Meshes and TIFF files are matched by alphanumeric sort order: the first mesh (A→Z by name) is paired with the first file (A→Z by stem), and so on. The number of selected meshes must equal the number of TIFF files in the input directory.
Batch processing directly saves results to disk, in the selected “Batch Output” folder. Click “Batch process and save” to start the process. Note that this can take a moment and Blender will be unresponsive while the add-on is processing.

You can try this out using the data provided in blender_addon_test_data/batch_processing. It shows 3 time points of a Drosophila midgut from Mitchell et al., 2022. The meshes are already equipped with a UV map.

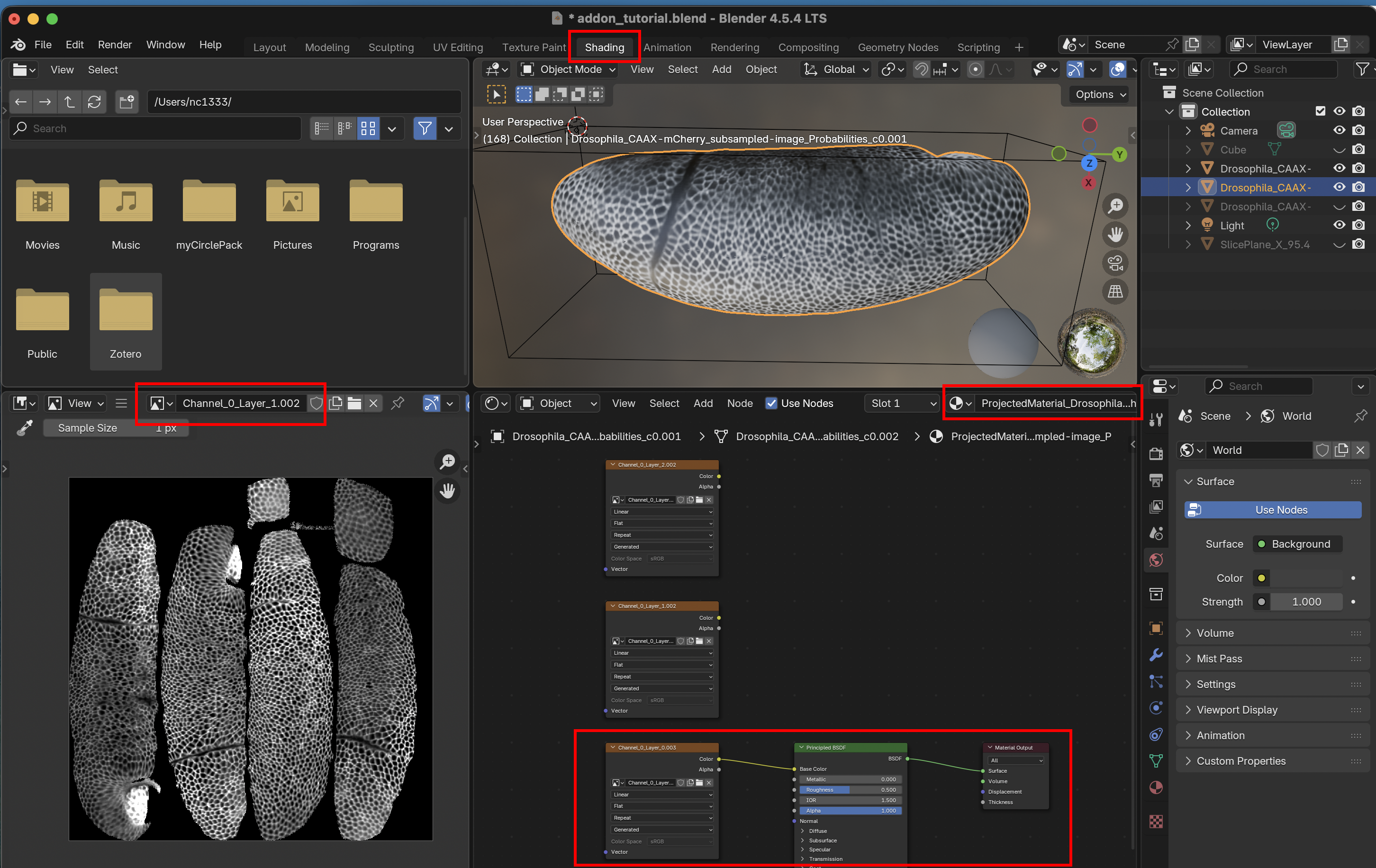

Visualizations with the Shading editor

Blender uses Materials to determine what surfaces in the viewport look like. These can be found in the “Shading” workspace. You can also use rendering to generate high-quality images (or movies!) or your data. This is beyond the scope of the tutorial.

When you make a projection or use vertex shading, the add-on generates a material that shows the image intensity on the mesh. Thanks to our UV map, we can take any square picture and project it onto the 3d mesh. You can fine-tune the materials in the “Shading” workspace. For example, you can adjust brightness and contrast, or mix together different channels. Let’s take a look:

In the viewport you see the mesh and its texture. On the right, you see the projected image (the same we inspected in FIJI, but now internally in Blender). At the bottom is the Shading editor, which uses a combination of nodes to map the projected image onto the surface of the mesh. The different layers of our multilayer projection are available as inputs, are routed through the Principled BSDF node (which simulates how light reflects from our mesh), into the material output. You can edit and reconnect the wiring using your mouse. Via Shift+A, you can add new nodes, like a mixing node to combine different images, or a brightness adjustment node. The possibilities are vast and explained in the blender documentation.

Visualizing UV maps

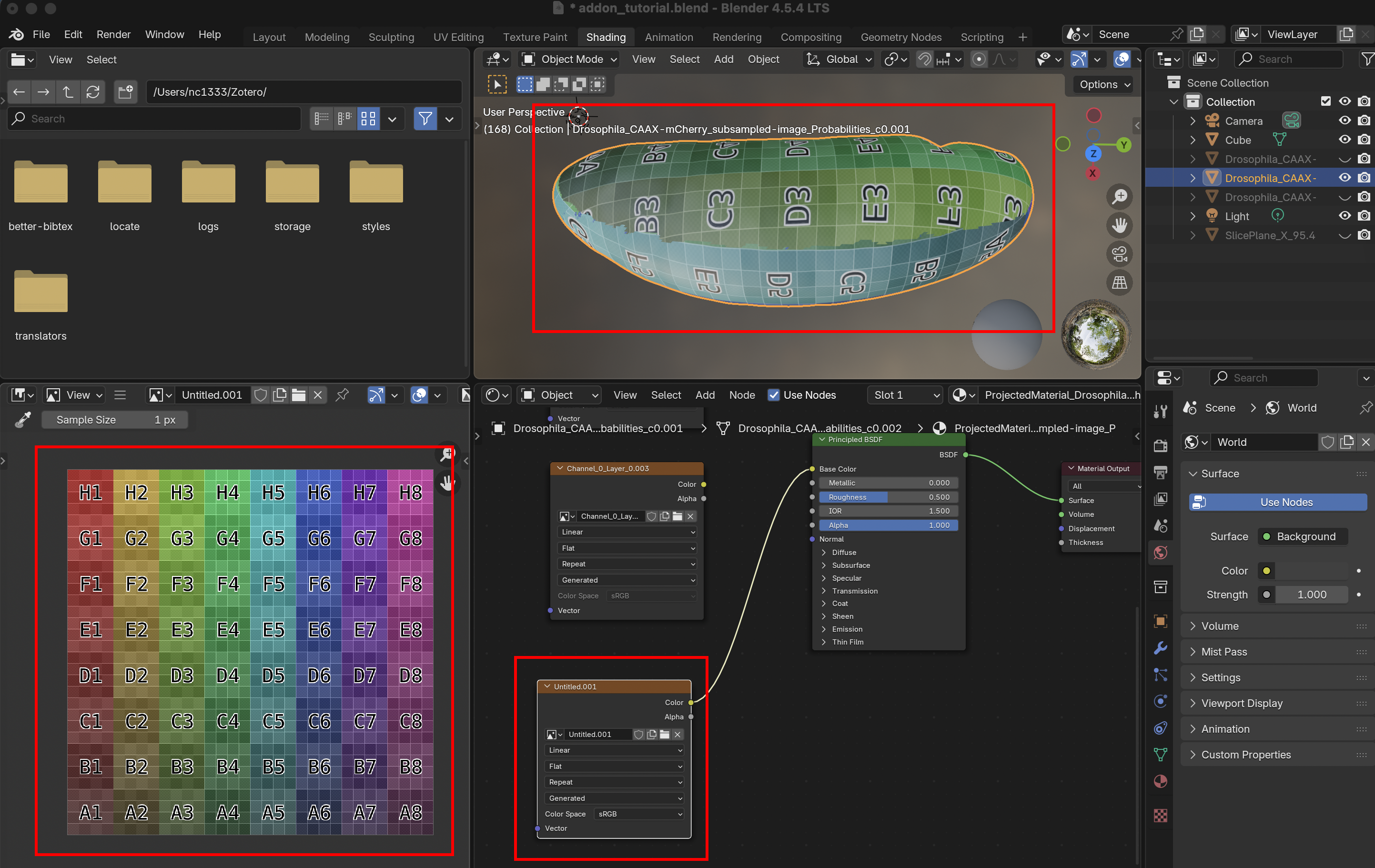

To visualize a UV map (what gets mapped where?) and its distortion, create an image (Shift+A, then type “Image texture”) input, select “New +”, and select “Generated Type” as “Color grid”. You can hook up this image to the shader, and the grid will be projected to 3D. This tells you which region goes where, and how distorted it is:

Annotating data

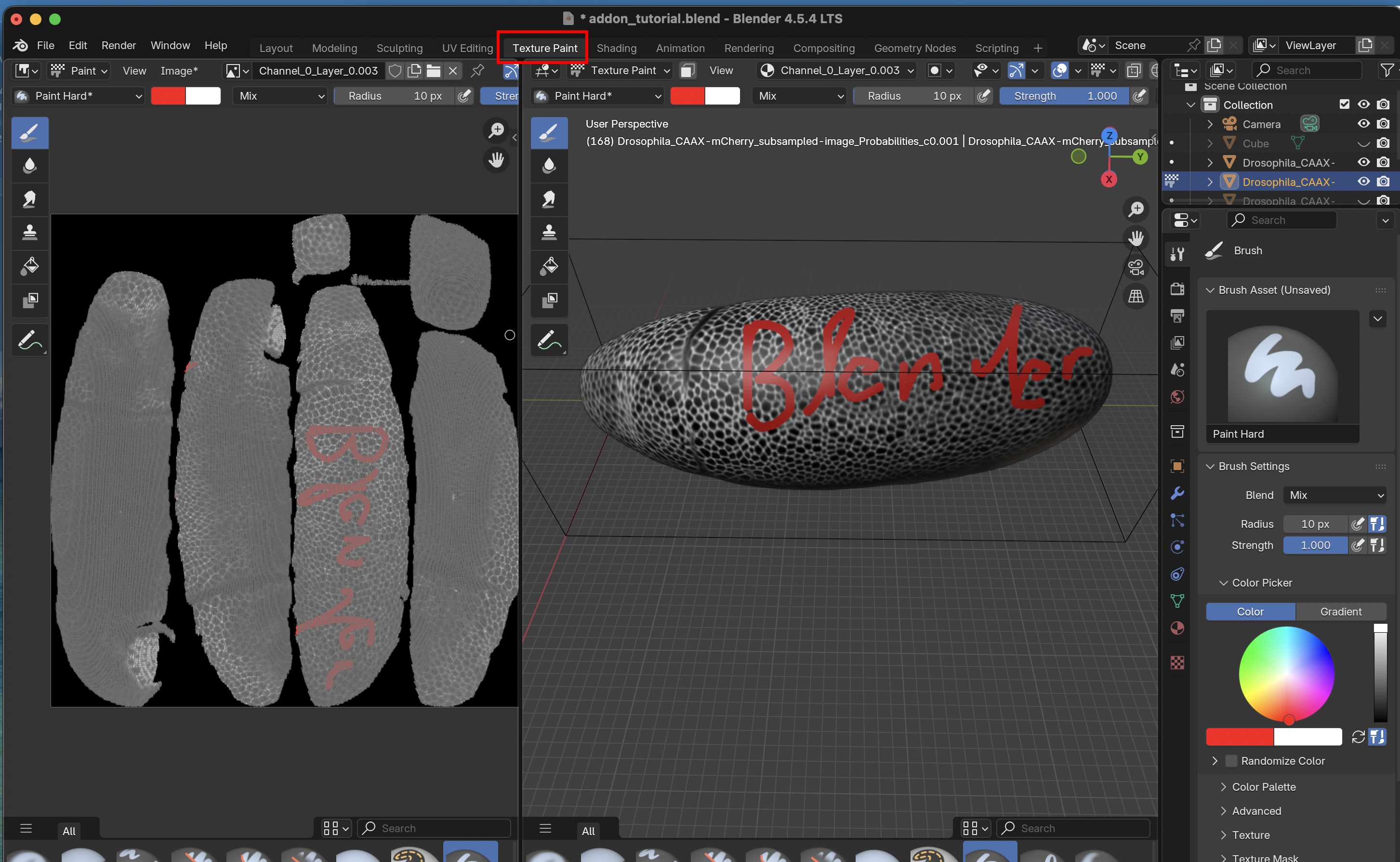

You can annotate the projected data in Blender using the “Texture Paint” workspace. This allows you to paint on the 3D surface (for example, highlighting some cells you are interested in), and have the data saved to 2D on top of the projected image data. You can save the results to disk using the “Image” button. Here is a simple example:

Not seeing anything? Your surface may be flipped “inside out”. Go toEdit Mode > Mesh > Normals > Flip.

Appendix: Add-on troubleshooting

3D .tif files loaded into Blender are not saved to disk. If you close Blender, you need to reload your 3D image data.
Check the “shape” of 3D data loaded into the add-on (image bounding box). If it is off, adjust the axis order and spatial resolution.
Save your .blend project to disk before using the add-on. Otherwise, Blender may crash.
If your projection looks “off”, check the alignment of the surface mesh and the data. If necessary, refine your 3D segmentation.
Please report any bugs on GitHub!

Appendix: UV mapping 101

Blender has many methods for creating cartographic projections, from cylindrical and spherical projections to more sophisticated algorithms that minimize distortion. A good cartographic projection that is adapted to your mesh geometry will make visualization and image analysis much simpler.

The algorithms are available under “UV-> Unwrap”. Some algorithms have parameters you can tune in a box that will appear in the bottom right corner.

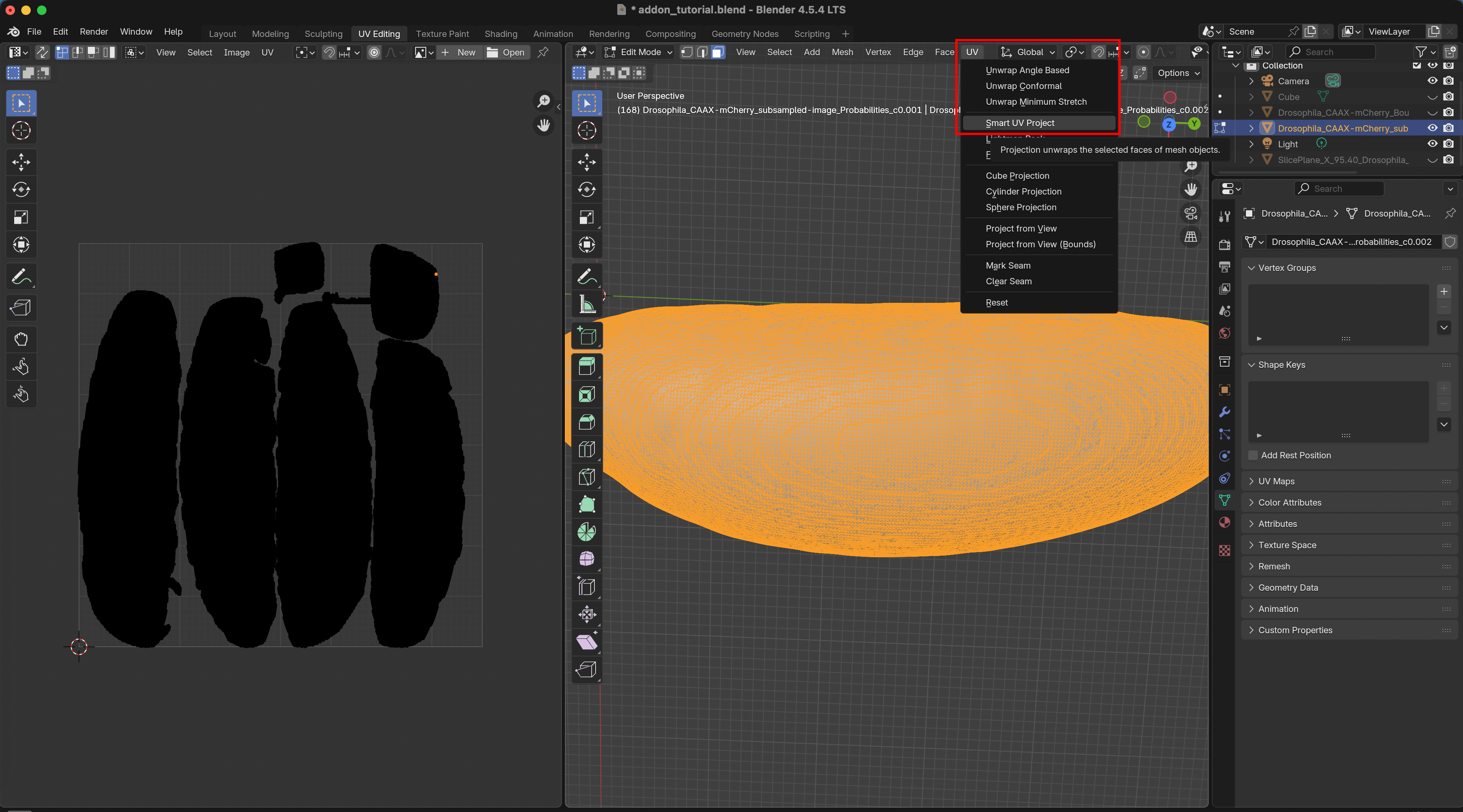

Let’s press “3” and “A” to select all faces of a mesh, and use the fully automatic “Smart UV project”:

On the left, we now see how out mesh was unwrapped into the UV square. Since the surface was originally closed, it must be “cut” into several pieces to be mapped into the UV square. These are called UV islands, and the boundaries between them are called seams. In this case, the seams were placed automatically, but you can also choose them manually. You can also manually edit the projection created by the algorithm (e.g., move the UV islands).

Selecting a part of the mesh

Often, you only want to project a part of the mesh, or define a seam. To do this, use the selection tool: press 3, then C and scroll to select the brush size. Only the orange, selected part of the mesh will be projected.

Defining seams

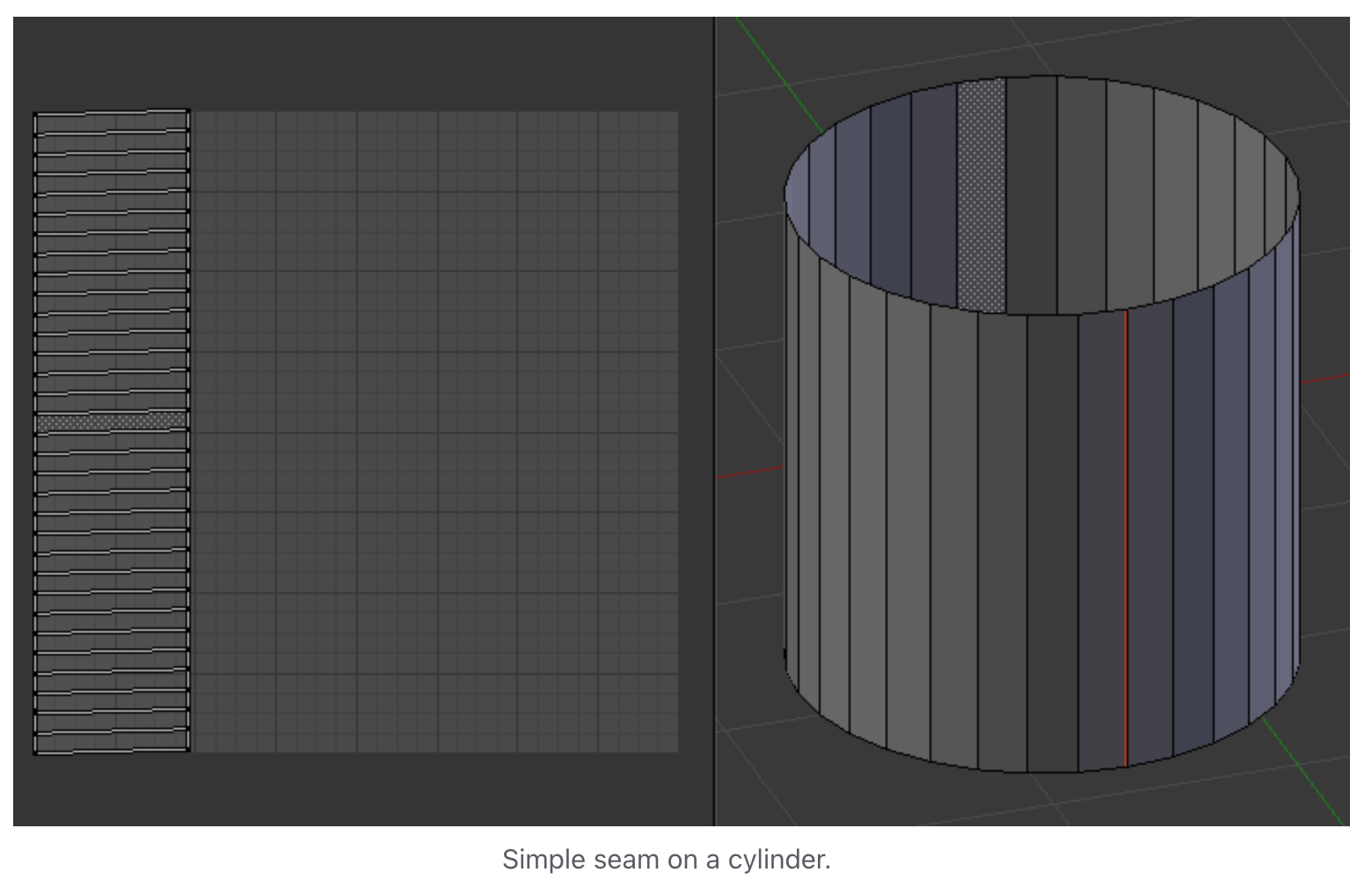

For meshes that need to be “cut up”, we recommend choosing the seams manually. Press 2 to go into edge selection mode, select a loop along which you want to cut, right-click, and select “Mark seam”. Seams should show up in red (from the Blender website):

Here are two short-cuts, so you don’t have to select all edges by hand:

Select two vertices and find the shortest path between them. Press 1 for vertex mode, right click on the initial vertex, hold ctrl and left click on the final vertex, then press 2 to switch back to edge mode.
Select a region in face mode (press 3 and C for the circle select tool), and use “Select -> Select loops -> Select boundary loop”.

Unwrapping algorithm recommendations

The Blender documentation has a great guide on how to unwrap meshes. The “minimum stretch” projection algorithm is a great choice since it … minimizes stretch. If your mesh has a simple geometry, you can use a spherical, cylindrical, or axis projection. These algorithms can easily be applied to many meshes (time points, samples) in batch. You generally want a UV map that minimizes distortion (how much the mesh is stretched when unwrapping). Distortion can be visualized in the left panel of the UV editor under “Overlays”.

Self-intersections

It is important to try to unwrap the mesh while avoiding self-intersection (where the mesh is folded onto itself in 2D). This is bad because the multiple 3D positions are mapped to the same cartographic location. When you project image data, different 3D locations will be written to the same 2D pixel, and it will be a mess. For example, if you use the “project from view” method on the current mesh, the left and right side of the embryo get collapsed.

Improving UV maps

The UV mapping process is iterative. Make an initial UV map, look at the projection and UV distortion, and then improve the map. In the left part of the UV editor, you can directly edit the UV map. For example, try moving UV islands around.

Appendix: 3D segmentation with Ilastik

This appendix is only needed if you don’t yet have a 3D segmentation. We will use Ilastik to obtain a 3D image segmentation. This is the first step in the tissue cartography pipeline. The surface of interest data is then defined as the segmentation boundary, i.e. between “inside” and “outside”. Many tools are available for segmenting 3D data. The only thing that matters is that it provides you with a 3D mask as a multipage .tiff.

In our experience, Ilastik is a very robust and versatile segmentation tool, and we use it in most of our tissue cartography pipelines. This is why we recommend it as a starting point. Ilastik uses machine learning algorithms to segment and classify your data. You draw the labels on your data, and the algorithm predicts a segmentation. You correct the errors interactively until you are happy. Once trained, you can reuse Ilastik models for batch prediction.

Start by down sampling the 3D image dataset Drosophila_CAAX-mCherry.tif by 2x along each axis. This reduces the image size by 8x and will greatly speed up segmentation. This lower resolution is still more than sufficient to identify the embryo’s surface, which is relatively smooth. Save the result as a .h5 file (this makes Ilastik run faster). You can do this step in FIJI, or using python.

FIJI down sampling

“Image -> Scale” and choose 0.5 along each axis
“File -> Save as -> Save to HDF5 (new or replace)”

Python downsampling

# load tissue cartography modules
from blender_tissue_cartography import io as tcio
from skimage import transform

# load image
image = tcio.adjust_axis_order(tcio.imread("Drosophila_CAAX-mCherry.tif"))
subsampling_factors = [0.5, 0.5, 0.5]  # example subsampling factors for x, y, z axes
subsampled_image = transform.rescale(image, subsampling_factors, channel_axis=0, preserve_range=True)
tcio.write_h5("Drosophila_CAAX-mCherry.tif_subsampled.h5", subsampled_image, axis_order="CZYX")

Starting an Ilastik project

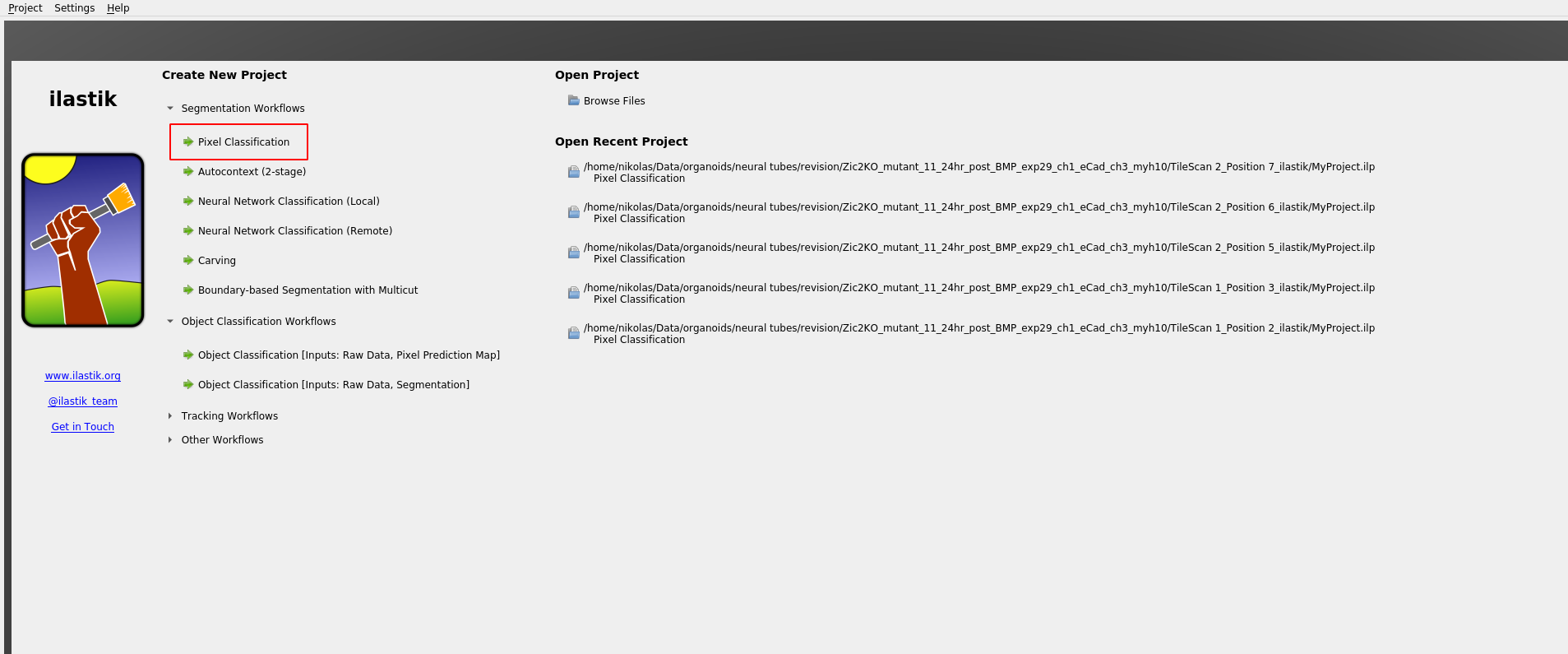

Download. We use ilastik binary pixel classification. Start Ilastik, and select binary pixel classification:

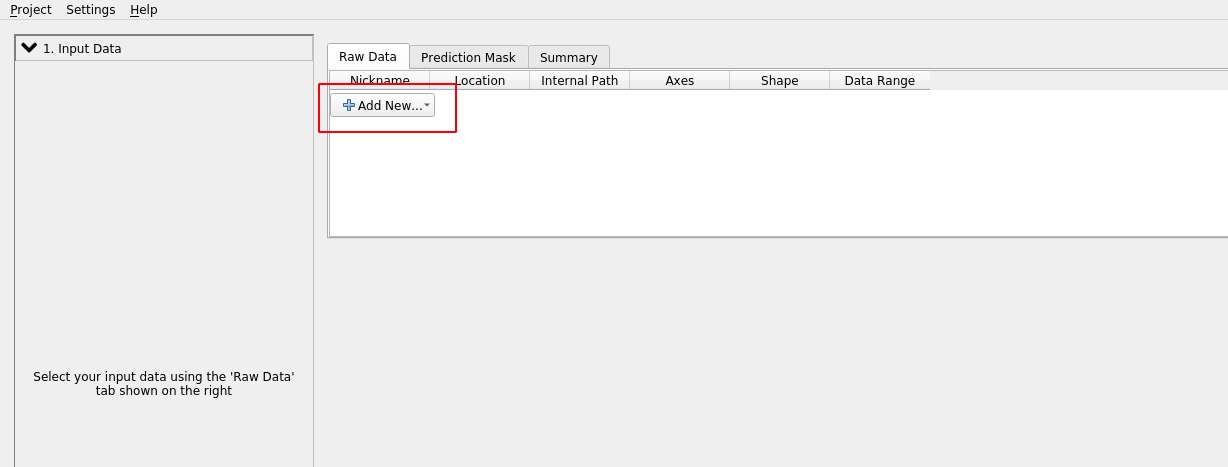

Save the project .ilp project. Click “add separate images” and select Drosophila_CAAX-mCherry.tif_subsampled.h5 (the image you just created).

⚠️ Axis order

If Ilastik confuses the “channel” axis is the “z” axis, we can fix by right clicking on the dataset and “edit properties”:

Feature selection

Click on “Feature selection” on the left toolbar to continue. Ilastik applies a bunch of different image filters (like smoothing, or edge detection) to your data, and using the results as input for a machine-learning model. You now select which filters (“Features”) you want. In general, it is safe to just select everything. If you get an error, it may be the case that the size of the filter is bigger than the smallest axis (e.g. the \(z\)-axis) in your image. In this case, click the top bar to make the filter “2d”.

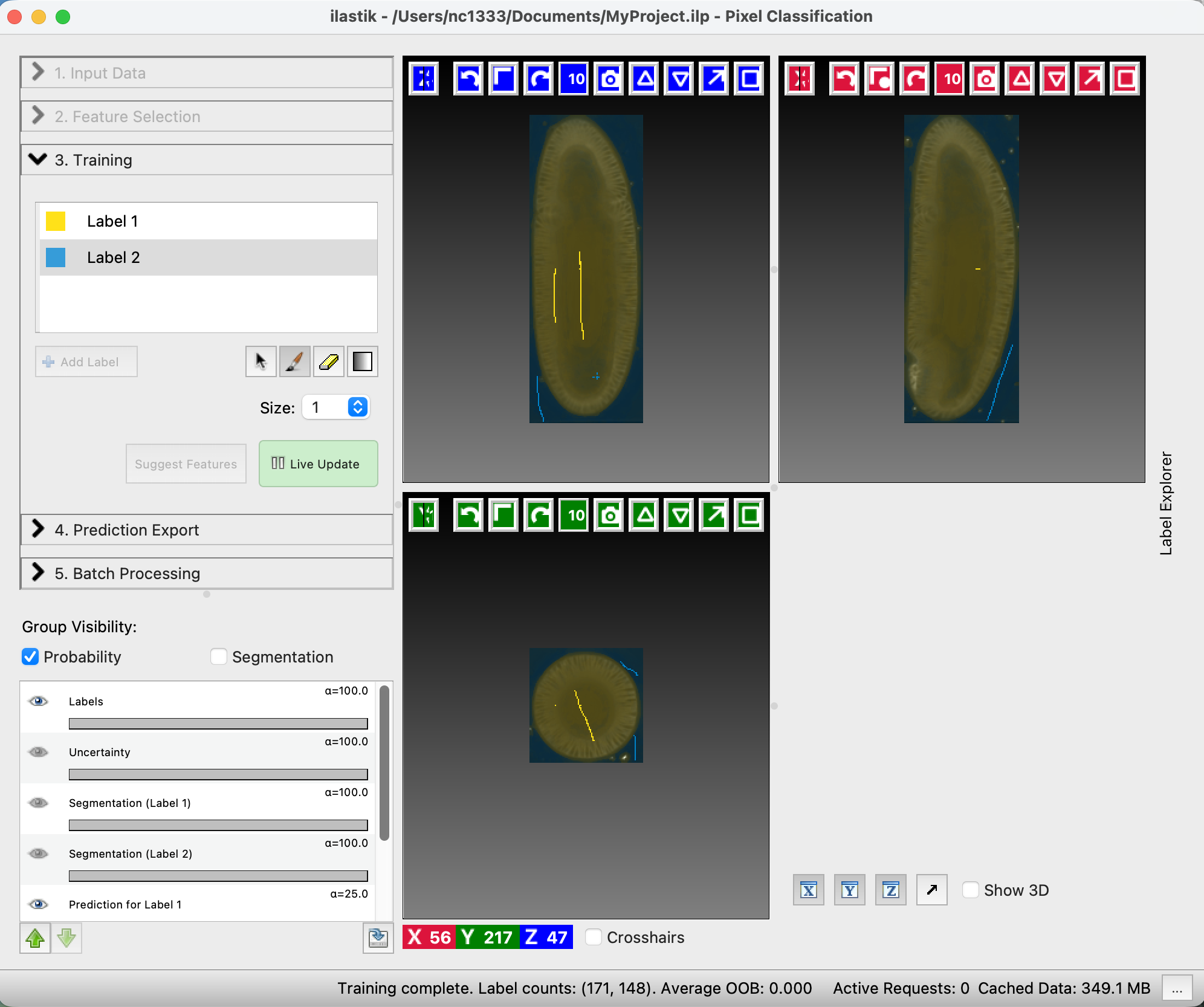

Training

We now continue to “Training”. Zoom in to one of the cross-sections, and paint the “inside” of the sample in yellow, and the “outside” in blue. You can also add more labels, but here we will just need two. You just need to make a few brush strokes and Ilastik will start making predictions. Click the “Live Update” button:

On the left, you can adjust the lookup table for your data, and decide what features of the prediction you want to see. “Uncertainty” shows you in light blue where the algorithm is still unsure. Now paint more labels until you are happy with the classification. Target the regions of high uncertainty, and look in all three cross-sections. It is important that the classification boundary tightly matches the surface you want to extract!

Prediction Export

Once you are happy with the results, let’s go to “Prediction Export” on the left toolbar. Use “Source: Probabilities” and click “Export all”. You can adjust the axis order and output format under “Choose Export Image Settings” if you need to.

Convert output to `.tif`

Ilastik saves the output - the segmentation - as .h5 file. To load the data into the add-on, you need to convert the .h5 to a .tif (directly exporting a .tif is very slow). To do this, you can use a little python script with a graphical user interface on the GitHub utils folder.

Install Python if you haven’t already. Then, in a command window, install the dependencies: pip install h5py tifffile numpy
Run the downloaded script: python convert_h5_to_tif.py. It should open a window to convert .h5 to .tif.

Batch processing

You can apply the Ilastik model to multiple datasets, using the “Batch Processing” tab on the left toolbar. In general, I recommend doing this only for datasets that are highly “comparable”, e.g. recorded with the same microscopy settings. Since it’s fairly easy and quick to train a new ilastik model for each dataset, trying to build a model that will work across all your recordings is often not worth it.

Attention: data normalization

If you plan on reusing the same model, it is recommended to normalize your data, so that the pixel values are always of the same approximate magnitude. Do this before you save the data as .h5’s, for example using the normalize_quantiles-function.

Installation

Blender user interface

Starting Blender

Polygonal meshes

Import a mesh

Navigation

Workspaces

Important workspaces

Installing add-ons

Data loading and visualization

Data loading

Loading a segmentation

⚠️ What type of segmentation do you need?

Segmentation and meshing for open surfaces

Loading a pre-computed mesh

Big datasets and downsampling

Selected datasets

Data visualization

Orthogonal slices

Vertex shading

3D Image - Surface alignment

Visualize mesh-image intersection

Bad alignment leads to bad projections

Fixing surfaces: remeshing and modelling

How fine should your mesh be?

Optional: PyMeshLab Remeshing add-on

Cartographic projection with the UV editor

The UV Editing workspace

Exporting meshes

Making projections

Projections

Saving projections

Batch processing

Visualizations with the Shading editor

Visualizing UV maps

Annotating data

Appendix: Add-on troubleshooting

Appendix: UV mapping 101

Appendix: 3D segmentation with Ilastik

FIJI down sampling

Python downsampling

Starting an Ilastik project

Feature selection

Training

Prediction Export

Convert output to .tif

Batch processing

Convert output to `.tif`
