# Tutorial: triangular meshes in `triangulax`
This short tutorial gives a practical overview of the main mesh data
structures in `triangulax`. We will cover:
1. loading triangular meshes as lists of triangles with
[`TriMesh`](https://nikolas-claussen.github.io/triangulax/src/triangular_meshes.html#trimesh),
2. visualizing meshes in 2D and, optionally, in 3D with `meshplot`,
3. why
[`HeMesh`](https://nikolas-claussen.github.io/triangulax/src/halfedge_datastructure.html#hemesh)
is useful, how the array-based half-edge representation works, and
how edge flips work,
4. a simple geometry-processing example based on the Voronoi dual.
The aim is not to give a full introduction to geometry processing, but
to show the basic workflow for using the library.
``` python
import numpy as np
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
from matplotlib import colors as mcolors
jax.config.update("jax_enable_x64", True)
try:
import meshplot
except ImportError:
meshplot = None
from triangulax.triangular import TriMesh
from triangulax.mesh import HeMesh, GeomMesh, label_plot, cellplot
from triangulax.topology import flip_edge
from triangulax import trigonometry as trig
from triangulax import geometry as geom
```
### 1. [`TriMesh`](https://nikolas-claussen.github.io/triangulax/src/triangular_meshes.html#trimesh): a mesh as vertices and triangles
At the most basic level, a triangular mesh is just:
- a vertex array of shape `(n_vertices, dim)`, and
- a face array of shape `(n_faces, 3)`, where each row stores the three
vertex indices of a triangle.
[`TriMesh`](https://nikolas-claussen.github.io/triangulax/src/triangular_meshes.html#trimesh)
is the light-weight container for this representation. It is useful for
loading and saving meshes, plotting them, and interfacing with external
geometry-processing tools.
``` python
disk = TriMesh.read_obj("../test_meshes/disk.obj")
torus = TriMesh.read_obj("../test_meshes/torus.obj", dim=3)
manual_mesh = TriMesh(
vertices=jnp.array([[0.0, 0.0],
[1.0, 0.0],
[1.0, 1.0],
[0.0, 1.0]]),
faces=jnp.array([[0, 1, 2],
[0, 2, 3]])
)
print(f"disk mesh: {disk.vertices.shape[0]} vertices, {disk.faces.shape[0]} faces")
print(f"torus mesh: {torus.vertices.shape[0]} vertices, {torus.faces.shape[0]} faces")
print("manual mesh faces:")
print(np.array(manual_mesh.faces))
```
disk mesh: 131 vertices, 224 faces
torus mesh: 576 vertices, 1152 faces
manual mesh faces:
[[0 1 2]
[0 2 3]]
Warning: readOBJ() ignored non-comment line 3:
o flat_tri_ecmc
Warning: readOBJ() ignored non-comment line 3:
o Torus
``` python
fig, ax = plt.subplots(figsize=(5, 5))
ax.triplot(np.array(disk.vertices[:, 0]), np.array(disk.vertices[:, 1]), np.array(disk.faces),
color="0.35", lw=0.8)
ax.scatter(*np.array(disk.vertices).T, s=10, color="tab:blue")
ax.set_aspect("equal")
ax.set_title("A `TriMesh` in 2D")
plt.show()
```
### 2. Visualizing meshes in 2D and 3D
For planar meshes, `matplotlib` is usually enough. For a 3D mesh,
`meshplot` is convenient for quick interactive inspection. The tutorial
keeps this optional: if `meshplot` is not installed, the rest still
runs.
``` python
if meshplot is None:
print("`meshplot` is not installed, so skipping the 3D plot.")
else:
meshplot.plot(np.array(torus.vertices), np.array(torus.faces),
shading={"wireframe": False})
```
Renderer(camera=PerspectiveCamera(children=(DirectionalLight(color='white', intensity=0.6, position=(0.0, 0.0,…
### 3. Why use a half-edge mesh?
A list of triangles is enough to store a mesh, but many
geometry-processing operations need adjacency information: for example,
finding the triangles around a vertex, constructing a dual mesh, or
performing local topology changes.
`triangulax` is based on the half-edge data structure (for a longer
explanation, see [Jerry Yin’s
notes](https://jerryyin.info/geometry-processing-algorithms/half-edge/)).
In brief, you can think of a mesh as comprising vertices, edges, and
faces, together with the information how these elements are connected.

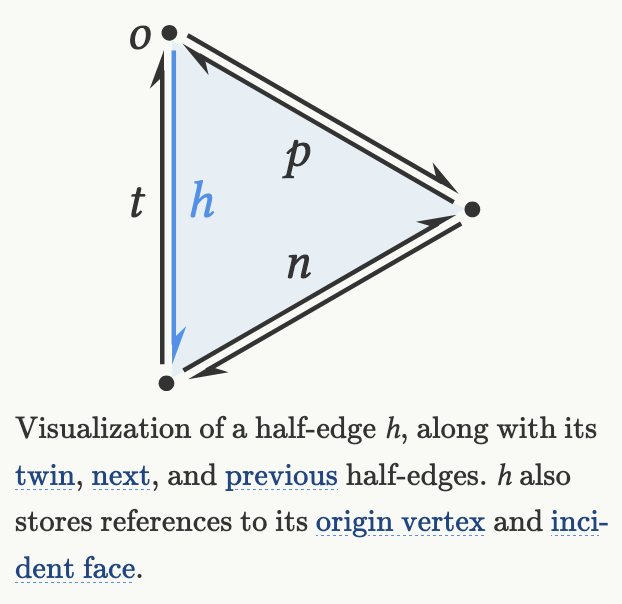

It turns out to be very convenient to “split” each edge into two “twin”
half-edges with opposite orientation:
`triangulax` stores the half-edge connectivity in the array-based
[`HeMesh`](https://nikolas-claussen.github.io/triangulax/src/halfedge_datastructure.html#hemesh)
data structure. The most important arrays are:
- `incident`: one outgoing half-edge per vertex,
- `orig` and `dest`: the origin and destination of each half-edge,
- `nxt` and `prv`: the next and previous half-edge inside a face,
- `twin`: the half-edge on the same edge with opposite orientation,
- `heface` and `face_incident`: the face attached to a half-edge, and
one half-edge attached to a face.
The entries in the above arrays are *indices* of vertices, half-edges,
and faces.
``` python
hemesh = HeMesh.from_triangles(manual_mesh.vertices.shape[0], manual_mesh.faces)
print("faces recovered from `HeMesh`:")
print(np.array(hemesh.faces))
print()
print("incident:", np.array(hemesh.incident))
print("orig:", np.array(hemesh.orig))
print("dest:", np.array(hemesh.dest))
print("twin:", np.array(hemesh.twin))
print("nxt:", np.array(hemesh.nxt))
print("prv:", np.array(hemesh.prv))
print("heface:", np.array(hemesh.heface))
print("face_incident:", np.array(hemesh.face_incident))
print()
print("half-edges around vertex 0:", np.array(hemesh.iterate_around_vertex(0)))
```
faces recovered from `HeMesh`:
[[0 1 2]
[0 2 3]]
incident: [0 3 4 7]
orig: [0 0 0 1 2 1 2 3 2 3]
dest: [1 2 3 2 3 0 0 0 1 2]
twin: [5 6 7 8 9 0 1 2 3 4]
nxt: [3 4 9 6 7 2 0 1 5 8]
prv: [6 7 5 0 1 8 3 4 9 2]
heface: [ 0 1 -1 0 1 -1 0 1 -1 -1]
face_incident: [0 1]
half-edges around vertex 0: [0 1 2]
``` python
fig, ax = plt.subplots(figsize=(5, 5))
ax.triplot(np.array(manual_mesh.vertices[:, 0]), np.array(manual_mesh.vertices[:, 1]), np.array(hemesh.faces),
color="0.35", lw=1.0)
label_plot(manual_mesh.vertices, hemesh.faces, hemesh=hemesh, ax=ax, fontsize=12)
ax.set_aspect("equal")
ax.set_title("Half-edge labels: edge / twin")
plt.show()
```
An important advantage of the half-edge representation is that local
connectivity changes are easy to express. In tissue models, this
corresponds to a T1 transition; in geometry processing it is the
standard **edge flip**.
``` python
edge_to_flip = int(np.array(jnp.where((~hemesh.is_bdry_edge) & hemesh.is_unique)[0])[0])
assert np.array(hemesh.heface)[edge_to_flip] != -1
assert np.array(hemesh.heface)[np.array(hemesh.twin)[edge_to_flip]] != -1
flipped_hemesh = flip_edge(hemesh, edge_to_flip)
print(f"flipping interior edge {edge_to_flip}")
print("faces before flip:")
print(np.array(hemesh.faces))
print("faces after flip:")
print(np.array(flipped_hemesh.faces))
fig, axes = plt.subplots(1, 2, figsize=(10, 4))
for ax, current_hemesh, title in zip(
axes,
[hemesh, flipped_hemesh],
["before edge flip", "after edge flip"],
):
ax.triplot(np.array(manual_mesh.vertices[:, 0]), np.array(manual_mesh.vertices[:, 1]),
np.array(current_hemesh.faces), color="0.35", lw=1.0)
label_plot(manual_mesh.vertices, current_hemesh.faces, hemesh=current_hemesh,
ax=ax, face_labels=False, fontsize=12)
ax.set_aspect("equal")
ax.set_title(title)
plt.tight_layout()
plt.show()
```
flipping interior edge 1
faces before flip:
[[0 1 2]
[0 2 3]]
faces after flip:
[[1 2 3]
[3 0 1]]
### 4. Geometry processing example: the Voronoi dual
A common construction in `triangulax` is the dual cell complex of a
triangulation. For a planar triangular mesh, the Voronoi dual is built
from the circumcenters of the triangles. Once we have the half-edge
mesh, we can compute dual quantities such as Voronoi face positions and
Voronoi cell areas.
``` python
# load mesh
disk_hemesh = HeMesh.from_triangles(disk.vertices.shape[0], disk.faces)
```
``` python
# compute Voronoi face positions and areas using the geometry module
voronoi_face_positions = geom.get_voronoi_face_positions(disk.vertices, disk_hemesh)
voronoi_areas = geom.get_voronoi_areas(disk.vertices, disk_hemesh)
disk_geommesh = GeomMesh(*disk_hemesh.n_items, vertices=disk.vertices, face_positions=voronoi_face_positions)
```
``` python
# under the hood, the geometry module uses the half-edge mesh datastructure to "look up" all the mesh
# elements required to compute the circumcenters, like so:
disk_hemesh.face_incident # the 1st half-edge in every triangular face
disk_hemesh.nxt[disk_hemesh.face_incident] # the 2nd half-edge is obtained by looking up the "next" half-edge in the same face
disk_hemesh.orig[disk_hemesh.face_incident] # the origin vertex of that half-edge, i.e. the 1st vertex of the triangular face
a, b, c = [disk_hemesh.orig[disk_hemesh.face_incident], # the 3 verices of the every triangle
disk_hemesh.orig[disk_hemesh.nxt[disk_hemesh.face_incident]],
disk_hemesh.orig[disk_hemesh.nxt[disk_hemesh.nxt[disk_hemesh.face_incident]]]]
# using the indices a, b, c, we can look up the corner positions for each triangle and compute the circumcenter
# using the trigonometry module. The jax.vmap function vectorizes trig.get_circumcenter so we can apply it
# # to all triangles at once.
circumcenters = jax.vmap(trig.get_circumcenter)(disk_geommesh.vertices[a], disk_geommesh.vertices[b], disk_geommesh.vertices[c])
print("# circumcenters computed:", circumcenters.shape, "# faces in mesh:", disk_hemesh.n_faces)
```
# circumcenters computed: (224, 2) # faces in mesh: 224
``` python
voronoi_areas_np = np.array(voronoi_areas)
norm = mcolors.Normalize(vmin=float(voronoi_areas_np.min()),
vmax=float(voronoi_areas_np.max()))
cell_colors = plt.cm.viridis(norm(voronoi_areas_np))
fig, ax = plt.subplots(figsize=(6, 6))
ax.triplot(np.array(disk.vertices[:, 0]), np.array(disk.vertices[:, 1]), np.array(disk_hemesh.faces),
color="0.75", lw=0.7)
patches = cellplot(disk_hemesh, disk_geommesh.face_positions,
cell_colors=cell_colors,
mpl_polygon_kwargs={"lw": 1.0, "ec": "k"})
ax.add_collection(patches)
ax.scatter(*np.array(disk_geommesh.face_positions).T, s=8, color="k", label="circumcenters")
ax.set_aspect("equal")
ax.set_title("Voronoi dual cells")
ax.legend(loc="upper right")
plt.colorbar(plt.cm.ScalarMappable(norm=norm, cmap="viridis"),
ax=ax, label="Voronoi area")
plt.show()
print("first 10 Voronoi areas:")
print(voronoi_areas_np[:10])
```
first 10 Voronoi areas:
[0.01225838 0.02388455 0.02437098 0.02871522 0.0299997 0.02824959
0.01938853 0.02515057 0.02536109 0.01070723]
### Further reading
- For the half-edge data structure itself, Jerry Yin’s notes are an
excellent starting point:
.
- For broader geometry-processing background and many standard
constructions, see the [libigl
tutorials](https://libigl.github.io/tutorial/).
- Within `triangulax`, the more detailed source notebooks are the
half-edge and geometry notebooks in the `src/` folder.
